STM32MP151CAD3T

The STM32MP151CAD3T is an embedded microprocessor IC featuring an ARM® Cortex®-A7 core paired with an ARM® Cortex®-M4 coprocessor. The primary Cortex®-A7 core is a 32‑bit single core operating at 209 MHz and the device provides a broad set of integrated interfaces and memory controllers tailored for embedded applications.

Designed for embedded system designs that require on-chip graphics acceleration, multiple connectivity options, and robust operating temperature capability, the STM32MP151CAD3T emphasizes integration and interface flexibility to simplify system design.

Key Features

• Core and Coprocessor ARM® Cortex®-A7 32‑bit single core at 209 MHz with an ARM® Cortex®-M4 coprocessor for offloading real-time tasks.
• Memory Controllers Support for DDR3, DDR3L, LPDDR2 and LPDDR3 memory types to accommodate a range of system memory configurations.
• Display and Graphics Integrated graphics acceleration with display interface controllers including HDMI-CEC and LCD support for visual user interfaces.
• Connectivity Ethernet 10/100 Mbps (1) plus multiple USB options: USB 2.0 (2) and USB 2.0 OTG + PHY (3); additional CAN interface for vehicle or industrial networks.
• Security ARM TrustZone (ARM TZ) security feature for hardware-assisted isolation of secure and non-secure environments.

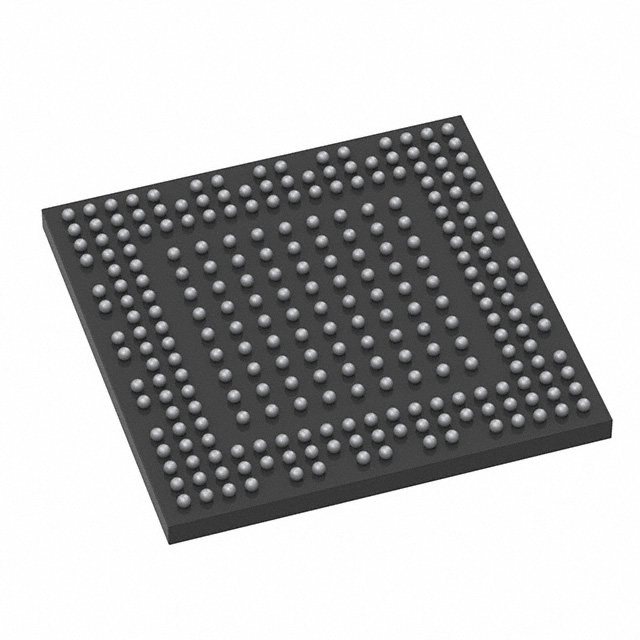

• Package and Mounting 257‑TFBGA package (10×10) in a surface‑mount form factor for compact board-level integration.
• Operating Temperature Rated for operation from −40 °C to 125 °C to support deployments in wide-temperature environments.

Typical Applications

• Embedded Systems — General embedded designs that need a single 32‑bit application core with a dedicated M4 coprocessor for real‑time tasks.
• Display-Based Interfaces — Systems requiring LCD or HDMI-CEC display control combined with graphics acceleration for user interfaces.
• Connectivity Gateways — Products that require 10/100 Mbps Ethernet, multiple USB options and CAN for local and networked communications.
• Harsh-Environment Electronics — Designs operating across −40 °C to 125 °C temperature ranges where wide thermal tolerance is required.

Unique Advantages

• Heterogeneous Processing: Combines an ARM® Cortex®-A7 application core with an ARM® Cortex®-M4 coprocessor to separate application and real‑time workloads.
• Flexible Memory Support: Multiple supported memory types (DDR3, DDR3L, LPDDR2, LPDDR3) let designers choose memory that fits capacity and power targets.
• Rich I/O Set: Integrated Ethernet, multiple USB configurations and CAN reduce external component count and simplify board design.
• Integrated Display Capabilities: On‑chip graphics acceleration plus HDMI-CEC and LCD controllers enable compact HMI implementations.
• Wide Temperature Range: −40 °C to 125 °C rating supports deployment in temperature-challenging environments.
• Compact Surface-Mount Package: 257‑TFBGA (10×10) provides a high‑density footprint for space-constrained designs.

Why Choose STM32MP151CAD3T?

The STM32MP151CAD3T positions itself as a highly integrated embedded microprocessor solution combining a 32‑bit ARM® Cortex®-A7 core with an ARM® Cortex®-M4 coprocessor, broad memory interface support, and multiple connectivity and display interfaces. Its feature set is aimed at developers needing a compact, interface-rich device capable of handling both application-level processing and real‑time tasks on the same silicon.

Backed by STMicroelectronics product resources and documentation, this device is suited for embedded designers targeting systems that require graphics acceleration, diverse memory options, and reliable operation across a wide temperature range.

Request a quote or submit your inquiry today to get pricing and availability for the STM32MP151CAD3T and move your embedded design forward.
