T2080NSE8MQB

The T2080NSE8MQB is a PowerPC e6500-based 64-bit microprocessor from NXP Semiconductors' T2080 series. It integrates four e6500 cores running at 1.2 GHz and a rich set of onboard I/O and system controllers to address embedded networking and compute-focused designs.

Designed for embedded applications that require multi-core processing, extensive Ethernet connectivity and hardware security features, this device delivers a balanced combination of performance, integration and consumer-grade qualification.

Key Features

• CPU Core PowerPC e6500 architecture with four 64-bit cores operating at 1.2 GHz, providing multi-threaded processing capability for embedded workloads.
• Memory Integrated controllers for DDR3 and DDR3L memory to support system memory configurations typical in embedded platforms.
• High-density Ethernet Multiple integrated Ethernet ports with broad speed support: 1 Gbps (8 ports), 2.5 Gbps (4 ports) and 10 Gbps (4 ports) for aggregated networking and packet processing applications.
• Storage & USB Two SATA interfaces at 3 Gbps and two USB 2.0 ports with PHY support for storage connectivity and peripheral attachment.
• Security Features On-chip security functionality including boot security, cryptography, secure fusebox, secure debug, tamper detection and volatile key storage to support protected boot and runtime security models.

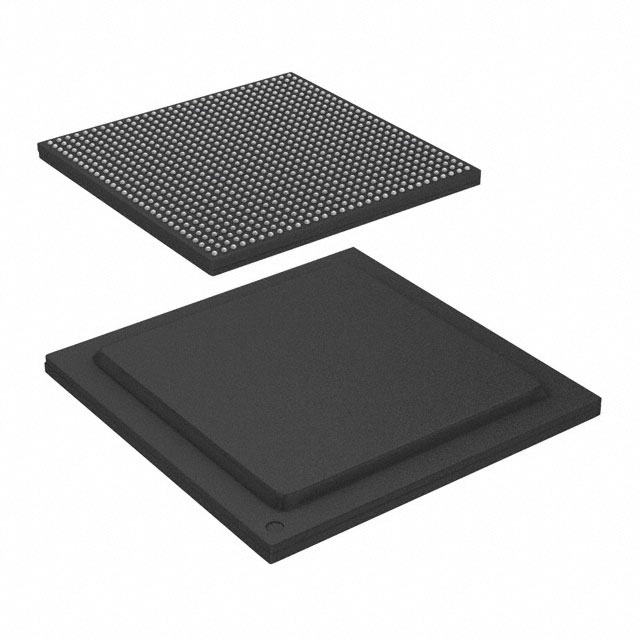

• Package & Mounting Supplied in an 896-FCPBGA (25×25) package case (896-BFBGA, FCBGA family) intended for surface-mount assembly.
• Operating Range & Qualification Rated for operation from 0 °C to 105 °C and qualified for consumer applications; RoHS compliant.

Typical Applications

• Networking Equipment High port density and mixed 1/2.5/10 Gbps Ethernet support make this device suitable for routers, switches and access gateways that require integrated packet processing.
• Telecommunications Multi-core processing and extensive I/O enable use in edge and aggregation equipment where concurrent traffic handling and control functions are needed.
• Secure Appliances Built-in cryptography, secure fusebox and tamper detection support secure boot and protected key storage for appliances handling sensitive data.
• Storage Controllers Dual SATA 3 Gbps interfaces combined with the processor's I/O capability suit lightweight storage controllers and NAS appliances.

Unique Advantages

• Multi-core 64-bit processing: Four e6500 cores at 1.2 GHz provide parallel compute capability for multitasking embedded workloads.
• Extensive integrated connectivity: Large complement of Ethernet ports across 1 Gbps, 2.5 Gbps and 10 Gbps speeds reduces external PHY and switch requirements.
• Integrated memory controller support: DDR3 and DDR3L controllers simplify memory subsystem design and speed time-to-market.
• Hardware security primitives: On-chip cryptography, secure boot and volatile key storage help implement robust device-level security without separate security ICs.
• Compact package for dense PCBs: 896-FCPBGA (25×25) surface-mount package supports compact board layouts in embedded systems.
• Consumer-grade operating range and RoHS compliance: Rated 0 °C to 105 °C and RoHS compliant for consumer-targeted deployments.

Why Choose T2080NSE8MQB?

The T2080NSE8MQB positions itself as a highly integrated, multi-core embedded processor tailored for networking, telecommunications and secure appliance designs. Its combination of four 64-bit e6500 cores, extensive Ethernet ports and on-chip security features provides a balance of compute throughput and system-level integration.

As part of NXP Semiconductors' T2080 series, this device is suited for engineers seeking a compact, surface-mount solution with onboard memory controllers and storage interfaces, enabling scalable platform designs with consolidated BOM and predictable operating characteristics.

Request a quote or submit an inquiry to purchase the T2080NSE8MQB and evaluate how its multi-core performance and integrated connectivity can meet your embedded design requirements.
