T2080NSE8PTB

The T2080NSE8PTB is a QorIQ T2 series PowerPC e6500 microprocessor featuring four 64-bit cores running at 1.533 GHz. It integrates a broad set of high-bandwidth I/O and security capabilities for embedded designs.

Targeted at embedded and consumer applications, this device delivers multi-core compute alongside extensive wired connectivity and onboard memory interfaces to support networking, storage, and industrial workloads.

Key Features

• Core Processor — PowerPC e6500 architecture with four 64-bit cores operating at 1.533 GHz, providing parallel processing capacity for multi-threaded embedded tasks.
• Memory Interfaces — Integrated DDR3 and DDR3L memory controllers for system memory support and flexible DRAM options.
• High-speed Ethernet — Multiple native Ethernet ports: 8 × 1 Gbps, 4 × 2.5 Gbps, and 4 × 10 Gbps to support varied networking topologies and bandwidth requirements.
• Storage and Host I/O — Two SATA 3 Gbps interfaces and two USB 2.0 ports with PHY, enabling common storage and peripheral connectivity.
• Security Features — Hardware boot security, cryptography, secure fusebox, secure debug, tamper detection, and volatile key storage provide layered device protection for sensitive applications.

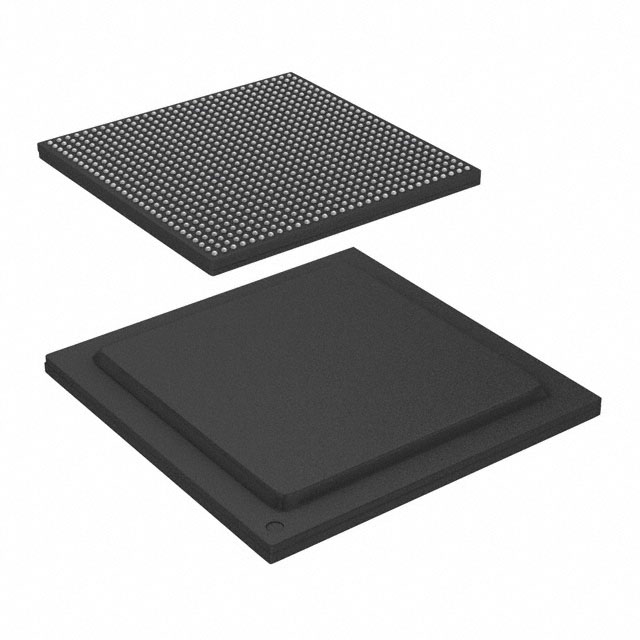

• Package & Mounting — Supplied in an 896-FCPBGA (25x25) package in a surface-mount form factor suitable for compact board designs.
• Operating Range & Compliance — Consumer qualification with an operating temperature range of 0 °C to 105 °C and RoHS compliance for regulatory alignment.

Typical Applications

• Networking Equipment — High port density Ethernet support enables use in routers, switches, and network appliances requiring multiple 1 Gbps to 10 Gbps links.
• Storage and NAS Systems — Dual SATA 3 Gbps interfaces and multi-core processing make the device suitable for compact storage controllers and NAS appliances.
• Industrial Embedded Systems — 64-bit multi-core processing with hardware security features supports control and data‑handling tasks in industrial embedded platforms.
• Telecommunications Infrastructure — Mixed-speed Ethernet and scalable compute allow deployment in edge networking and communications equipment.

Unique Advantages

• Multi-core 64-bit compute: Four PowerPC e6500 cores at 1.533 GHz deliver parallel processing for concurrent workloads and real-time tasks.
• Extensive native Ethernet: Built-in 1 Gbps, 2.5 Gbps and 10 Gbps ports reduce external PHY/BOM needs and simplify high-bandwidth system design.
• Integrated memory controllers: DDR3/DDR3L support streamlines memory subsystem design and provides flexibility for power and cost trade-offs.
• On-chip security primitives: Hardware boot security, cryptography and tamper detection help protect sensitive data and device integrity.
• Compact BGA package: 896-FCPBGA (25x25) surface-mount package enables dense board layouts for space-constrained systems.
• Wide operating temperature: Rated 0 °C to 105 °C to accommodate a range of consumer and industrial ambient conditions.

Why Choose T2080NSE8PTB?

The T2080NSE8PTB combines quad-core PowerPC e6500 performance with a wide array of high-speed I/O and on-chip security to address embedded designs that require both compute and connectivity. Its native Ethernet options, SATA and USB interfaces, and DDR3/DDR3L memory support make it a versatile building block for networking, storage, and industrial applications.

Packaged in a compact 896-FCPBGA (25x25) surface-mount form factor and rated for 0 °C to 105 °C operation, this RoHS‑compliant, consumer‑qualified device is suited for engineers seeking an integrated microprocessor solution with hardware security features and multiple high-bandwidth interfaces.

Request a quote or submit an inquiry to evaluate the T2080NSE8PTB for your next embedded design.
