XAM1705BPTP3

The XAM1705BPTP3 is a Sitara AM17xx series microprocessor IC featuring a single ARM926EJ-S core running at 375 MHz. Designed for embedded applications, it combines a 32-bit processor architecture with integrated system controllers and common peripheral interfaces to support networking, display, and memory subsystems.

Targeted at commercial-grade embedded designs, this device delivers a balance of processing performance and on-chip peripheral integration for applications that require Ethernet connectivity, USB support, and LCD interfacing within a 176-pin HLQFP package.

Key Features

• Processor Core  ARM926EJ-S single 32-bit core operating at 375 MHz for general-purpose embedded processing.
• System Control  Includes system control co-processor CP15 to manage system-level functions.
• Memory Interface  Built-in SDRAM controller to interface with external SDRAM devices for program and data storage.
• Display  Integrated LCD display interface controller suitable for driving on-board displays and simple HMIs.
• Networking & USB  On-chip 10/100 Mbps Ethernet controller (1) and USB 2.0 with PHY (1) for wired connectivity and peripheral attachment.
• Serial Interfaces  Includes I2C for common sensor and peripheral communication.

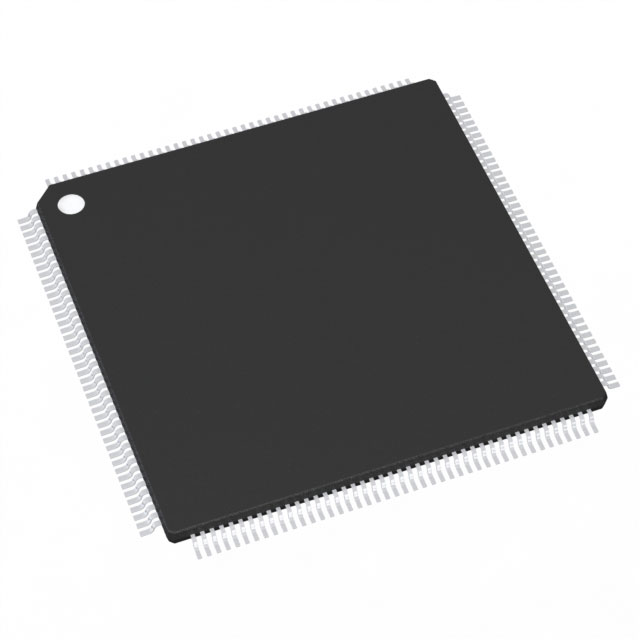

• Package & Mounting  Supplied in a 176-HLQFP (24×24) exposed pad package, with surface-mount mounting for compact board designs.
• Operating Range & Grade  Commercial-grade device with an operating temperature range of 0 °C to 90 °C.
• Environmental Compliance  RoHS compliant to support contemporary manufacturing and disposal requirements.

Typical Applications

• Embedded Control Systems  Use the ARM926EJ-S core and SDRAM controller for general-purpose control and data processing in embedded equipment.
• Networked Devices  Built-in 10/100 Mbps Ethernet and USB 2.0 + PHY enable deployment in connected appliances and communication gateways.
• Human-Machine Interfaces  LCD interface support makes the device suitable for driving operator displays in industrial and commercial HMIs.
• IoT & Sensor Gateways  I2C and Ethernet/USB connectivity support sensor aggregation and edge processing in commercial IoT gateways.

Unique Advantages

• Integrated Connectivity: Ethernet and USB 2.0 with PHY are included on-chip, reducing external component count and board complexity.
• Proven Processor Core: The ARM926EJ-S core at 375 MHz delivers a known architecture for software portability and predictable performance.
• Compact, Serviceable Package: The 176-HLQFP (24×24) exposed pad package with surface-mount mounting supports compact PCB layouts and thermal handling.
• Display and Memory Support: On-chip LCD controller plus SDRAM controller streamline implementation of user interfaces and data buffering.
• Commercial Temperature Grade: Rated 0 °C to 90 °C and specified as commercial grade for mainstream embedded product deployments.
• RoHS Compliance: Environmentally compliant manufacturing compatibility simplifies regulatory handling for compliant products.

Why Choose XAM1705BPTP3?

The XAM1705BPTP3 positions itself as a compact, integrated microprocessor solution for commercial embedded designs that need running performance, standard connectivity, and display support. Its ARM926EJ-S core at 375 MHz combined with Ethernet, USB 2.0 + PHY, LCD interface, and SDRAM controller enables streamlined BOM and board integration.

This part is well suited for engineers and product teams building networked appliances, HMIs, and embedded controllers who require a commercial-grade processor with common peripheral integration and RoHS compliance for production environments.

Request a quote or submit a parts inquiry to receive pricing and availability information for XAM1705BPTP3. Our sales team can assist with lead times and volume ordering.
