XAM1808AZCG4

The XAM1808AZCG4 is a Sitara AM18xx series microprocessor from Texas Instruments implemented around an ARM926EJ-S 32-bit core running at 456 MHz. It is a single-core embedded MPU designed to consolidate processing and common system interfaces for compact, integrated embedded designs.

Built for embedded applications, the device combines a 456 MHz application core with on-chip controllers and peripheral interfaces—enabling streamlined designs that require Ethernet, SATA, USB, display and standard memory support.

Key Features

• Core ARM926EJ-S single 32-bit core operating at 456 MHz for deterministic embedded processing.
• Memory Support On-chip controllers for LPDDR and DDR2 memory, enabling common external memory configurations.
• Interfaces Integrated peripheral set including one 10/100 Mbps Ethernet port, one SATA 3Gbps port, USB 1.1 + PHY and USB 2.0 + PHY, LCD display controller and I2C to support a variety of system I/O.
• Co-processors & System Control Includes System Control and CP15 co-processor functions.

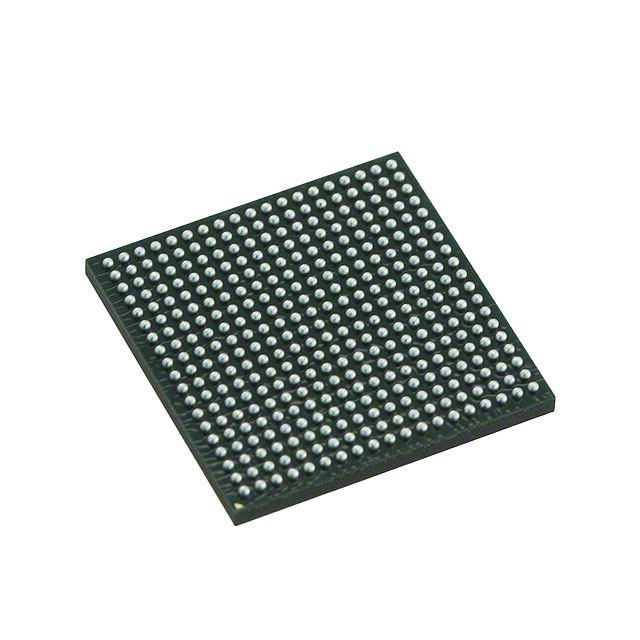

• Package & Mounting Supplied in a 361-NFBGA (13×13) package case (361-LFBGA), designed for surface-mount assembly.
• Operating Range & Compliance Commercial grade device with an operating temperature range of 0 °C to 90 °C and RoHS compliance.

Typical Applications

• Embedded Control Single-core processing and memory controller support provide a compact solution for embedded control and system management tasks.
• Networking Equipment Integrated 10/100 Mbps Ethernet supports network connectivity for routers, switches, and other connected devices.
• Storage and NAS SATA 3Gbps interface enables direct connection to storage devices for compact network-attached storage or storage controllers.
• Human–Machine Interfaces LCD controller plus USB support simplifies implementation of local displays and peripheral connectivity in operator interfaces.

Unique Advantages

• Integrated peripheral set: A single device consolidates Ethernet, SATA, USB, LCD and I2C interfaces, reducing BOM and board complexity.
• Predictable single-core performance: ARM926EJ-S at 456 MHz offers deterministic processing suitable for control-oriented embedded tasks.
• Flexible memory options: Support for LPDDR and DDR2 lets designers choose memory implementations that match performance and cost targets.
• Commercial temperature and compliance: 0 °C to 90 °C rating and RoHS compliance align with standard commercial deployments and regulatory requirements.
• Compact surface-mount package: 361-NFBGA (13×13) package supports space-constrained PCB layouts while keeping essential interfaces available on-chip.

Why Choose XAM1808AZCG4?

The XAM1808AZCG4 positions itself as an integrated microprocessor solution for embedded systems that require a balance of single-core performance and on-chip I/O. With a 456 MHz ARM926EJ-S core and a broad set of interfaces—Ethernet, SATA, USB, LCD and I2C—this device simplifies system design by minimizing external components and supporting common memory types.

This MPU is well suited for designers targeting compact embedded products, networking and storage appliances, and HMI-equipped systems where consolidated functionality, commercial temperature operation, and RoHS compliance are required.

Request a quote or submit a pricing inquiry to obtain availability and lead-time information for the XAM1808AZCG4.
