XAM437XAZDN

The XAM437XAZDN is an ARM® Cortex®-A9 Sitara™ microprocessor in a single-core, 32-bit configuration running at 800 MHz, supplied in a 491-NFBGA (17×17) package. Designed for embedded applications, it combines a Cortex-A9 core with multimedia DSP/NEON SIMD capabilities and integrated connectivity to address systems that require processing, display, and networking functions.

Key Features

• Core ARM® Cortex®-A9 single-core, 32-bit processor running at 800 MHz for deterministic embedded processing.
• Multimedia and DSP Integrated multimedia co-processor and NEON™ SIMD support for accelerated media and signal processing tasks.
• Memory Interfaces Supports LPDDR2, DDR3 and DDR3L memory controllers to match a range of memory performance and power profiles.
• Display and Graphics Display interface controllers including TSC and WXGA support, plus graphics acceleration for user interfaces and visual applications.
• High-Speed Connectivity Dual 10/100/1000 Mbps Ethernet interfaces and two USB 2.0 ports with PHY provide wired networking and peripheral connectivity.
• Additional Interfaces CAN interface support enables integration with common vehicle and industrial communication buses.
• Security On-chip crypto accelerator to offload and accelerate cryptographic operations.

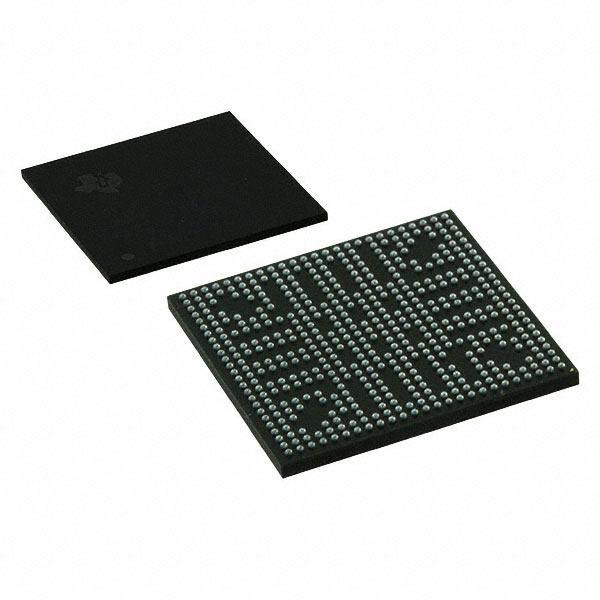

• Package and Mounting 491-NFBGA (17×17) surface-mount package suitable for compact embedded board designs.
• Operating Range Commercial operating temperature from 0°C to 90°C.
• Environmental Compliance RoHS compliant.

Typical Applications

• Human–Machine Interfaces (HMI) Graphics acceleration and WXGA display support enable responsive, visually rich user interfaces.
• Industrial Automation Deterministic single-core processing with CAN and Ethernet connectivity for machine control and networked I/O.
• Networking and Communications Appliances Dual Gigabit Ethernet and USB 2.0 + PHY provide the connectivity foundation for routers, gateways, and edge devices.
• Multimedia and Vision Systems NEON™ SIMD and multimedia co-processor support media processing and low-latency vision tasks.

Unique Advantages

• Integrated Connectivity: Dual Gigabit Ethernet and dual USB 2.0 + PHY reduce the need for external controllers and simplify board design.
• Multimedia Acceleration: NEON™ SIMD and a multimedia co-processor accelerate media and signal-processing workloads without additional DSP chips.
• Flexible Memory Support: Compatibility with LPDDR2, DDR3 and DDR3L lets designers choose memory options that balance cost, performance, and power.
• On-chip Security: Crypto accelerator enables hardware-accelerated cryptographic operations for secure communications and data protection.
• Compact Packaging: 491-NFBGA (17×17) surface-mount package supports compact embedded system layouts.
• Commercial Temperature Range: Rated 0°C to 90°C for a wide set of commercial embedded deployments.

Why Choose XAM437XAZDN?

The XAM437XAZDN from Texas Instruments’ Sitara AM437x series combines an 800 MHz ARM® Cortex®-A9 core with multimedia acceleration, hardware security, and a broad set of connectivity interfaces in a compact 491-NFBGA package. It is positioned for embedded designs that require a balanced mix of processing, display, media, and network capabilities within a commercial temperature range.

Ideal for engineers building HMIs, industrial controllers, networking appliances, or multimedia edge devices, this device offers a focused set of capabilities that simplify system integration while maintaining flexibility through multiple memory interface options and standard communication ports.

Request a quote or submit an inquiry to obtain pricing and availability for XAM437XAZDN. Our team will provide the details needed to move your design forward.
