XAM3894CYG

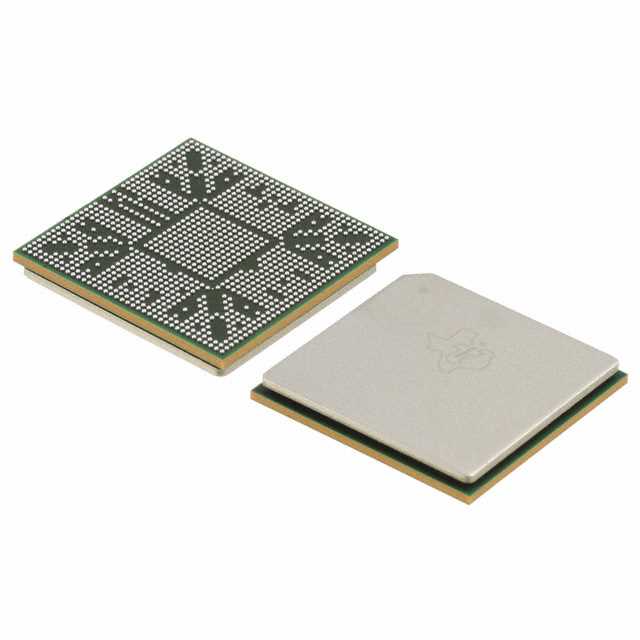

The XAM3894CYG is a Sitara AM38xx series microprocessor IC featuring a single ARM® Cortex®-A8 32-bit core running at 1.2 GHz in a 1031-FCBGA (25×25) package. It integrates multimedia acceleration, broad memory controller support and a range of peripheral interfaces for embedded system designs.

Targeted at embedded applications that require integrated connectivity, storage and display capabilities, this device delivers a balance of processing performance and system integration suitable for networking, multimedia and general-purpose embedded designs.

Key Features

• Core  Single ARM® Cortex®-A8 32-bit core at 1.2 GHz for general embedded processing tasks.
• Multimedia Acceleration  Includes NEON™ SIMD and multimedia co-processor capabilities to accelerate media and signal processing workloads.
• Memory  Integrated memory controllers supporting DDR2 and DDR3 system memory to match target performance and cost points.
• Display  Display interface controllers including HDMI and HDVPSS for video and graphics output.
• Ethernet  Dual 10/100/1000 Mbps Ethernet interfaces for high-throughput networking connectivity.
• Storage  On-chip SATA 3 Gb/s interface for direct connection to SATA storage devices.
• USB  Two USB 2.0 ports with PHY for host/device connectivity and peripheral expansion.
• Additional Interfaces  I²C interface available for control and sensor connectivity.
• Graphics  Graphics acceleration capability to support UI and rendering tasks.
• Package & Mounting  1031-FCBGA (25×25) surface-mount package (1031-BFBGA, FCBGA family) for compact board-level integration.
• Operating Range  Commercial operating temperature range: 0 °C to 95 °C.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Industrial Automation  Embedded controller and HMI platforms that need deterministic processing, display output and multiple wired network interfaces.
• Multimedia Devices  Video and media appliances leveraging NEON™ SIMD acceleration, HDMI output and graphics acceleration for UIs and media playback.
• Networking Equipment  Gateways, routers or switches that require dual gigabit Ethernet interfaces and embedded processing.
• Storage-Enabled Appliances  Systems that combine processing and local SATA storage for data logging or media servers.
• Embedded USB Systems  Devices needing multiple USB 2.0 ports with integrated PHY for peripheral connectivity and expansion.

Unique Advantages

• Integrated Connectivity: Dual gigabit Ethernet, USB 2.0 with PHY and I²C reduce external component count and simplify board design.
• On-Board Storage Interface: SATA 3 Gb/s support enables direct attachment of storage devices without additional bridge chips.
• Memory Flexibility: Support for DDR2 and DDR3 memory types provides design flexibility across performance and cost targets.
• Media and Graphics Support: NEON™ SIMD and graphics acceleration offload media processing from the CPU core for smoother multimedia performance.
• Compact Surface-Mount Package: 1031-FCBGA (25×25) package allows high-density integration for space-constrained embedded systems.
• Commercial Temperature Range: Rated 0 °C to 95 °C for a wide range of indoor and controlled-environment applications.

Why Choose XAM3894CYG?

The XAM3894CYG combines a 1.2 GHz ARM® Cortex®-A8 core with integrated multimedia, networking and storage interfaces in a compact FCBGA package, delivering a well-rounded platform for embedded applications that require processing, display and connectivity in a single device. As part of the Sitara AM38xx series from Texas Instruments, it provides a cohesive feature set for designers seeking integrated peripherals and memory flexibility.

This device is suited to developers and system integrators building embedded systems where board-level integration, multiple high-speed interfaces and commercial temperature operation are key selection factors. Its combination of interfaces and acceleration features helps streamline BOM and simplify system architecture.

Request a quote or submit an inquiry to get pricing and availability for XAM3894CYG and discuss how it fits your next embedded design.
