Z8018010PEC

The Z8018010PEC is a Zilog Z180 series microprocessor implemented as a single-core, 8-bit MPU running at 10 MHz. Designed for embedded and industrial applications, it combines a proven Z80180 core with on-chip support features and through-hole 64‑DIP packaging for straightforward integration and serviceability.

With 5 V I/O compatibility, DRAM controller support and an ASCI interface, the device targets embedded designs that require robust temperature range and industrial-grade components.

Key Features

• Core & Architecture Z80180 core, single 8-bit processing core operating at 10 MHz for deterministic embedded control tasks.
• Memory Support On-chip DRAM controller support to interface with external dynamic RAM for expanded system memory needs.
• Power & I/O Levels 5 V I/O voltage compatibility for interfacing with legacy and industrial logic levels.
• Interfaces ASCI interface provided for serial communication and peripheral connectivity.

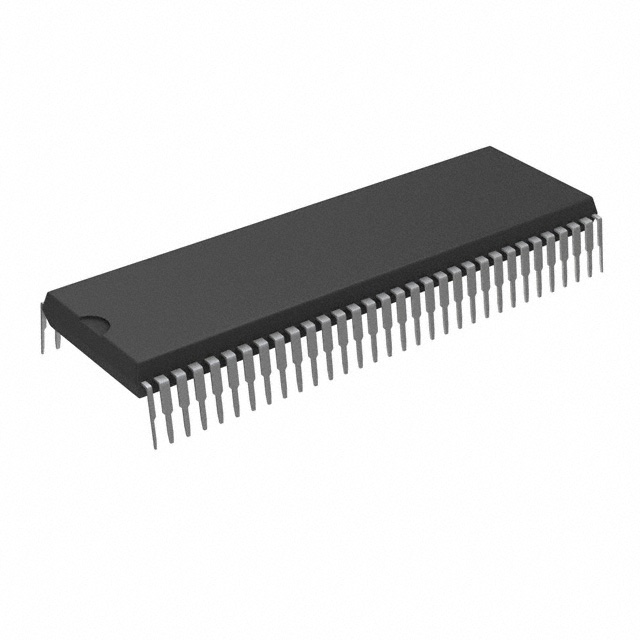

• Package & Mounting 64‑pin DIP package (0.750", 19.05 mm) in through-hole form factor for easy prototyping, repair, and retrofit into existing designs.
• Temperature & Grade Industrial grade operation with an operating temperature range of −40 °C to 100 °C for reliable performance across demanding environments.
• Compliance RoHS compliant, meeting common environmental regulatory requirements.

Typical Applications

• Industrial Control Suitable for PLCs, motor controllers, and factory automation where industrial temperature range and robust packaging are required.
• Embedded Systems Used in embedded controllers and instrumentation that benefit from an 8-bit core, DRAM interfacing, and serial communication via ASCI.
• Retrofit & Legacy Hardware Through-hole 64‑DIP packaging enables replacement or upgrade of legacy boards and systems with minimal mechanical redesign.
• Prototyping & Development The DIP form factor and 5 V I/O simplify breadboard and development work for proof-of-concept and educational projects.

Unique Advantages

• Industrial Temperature Rating: Rated from −40 °C to 100 °C to meet environmental demands of industrial deployments.
• Through-Hole 64‑DIP Packaging: Simplifies prototyping, field service, and integration into existing through-hole assemblies.
• 5 V I/O Compatibility: Ensures straightforward interface with legacy and industrial logic without level translation.
• DRAM Controller On-Device: Reduces external memory interface complexity for designs requiring expanded working memory.
• ASCI Interface: Provides a built-in serial communication option for peripheral and system communications.
• RoHS Compliant: Meets environmental compliance expectations for modern electronic manufacturing.

Why Choose Z8018010PEC?

The Z8018010PEC positions itself as a practical, industrial-grade 8-bit microprocessor solution for embedded designs that require a reliable Z80180 core, 5 V I/O, DRAM controller support, and through-hole DIP packaging. Its temperature range and package make it well suited for control, retrofit, and development use cases where serviceability and environmental robustness are important.

Manufactured by Zilog and delivered in a standard 64‑pin DIP format, the Z8018010PEC offers a combination of integration and field-friendly form factor for engineers designing or maintaining industrial and embedded systems.

Request a quote or submit an inquiry to receive pricing and availability for the Z8018010PEC. Our team will assist with lead times and ordering details.
