Z8018010FSC

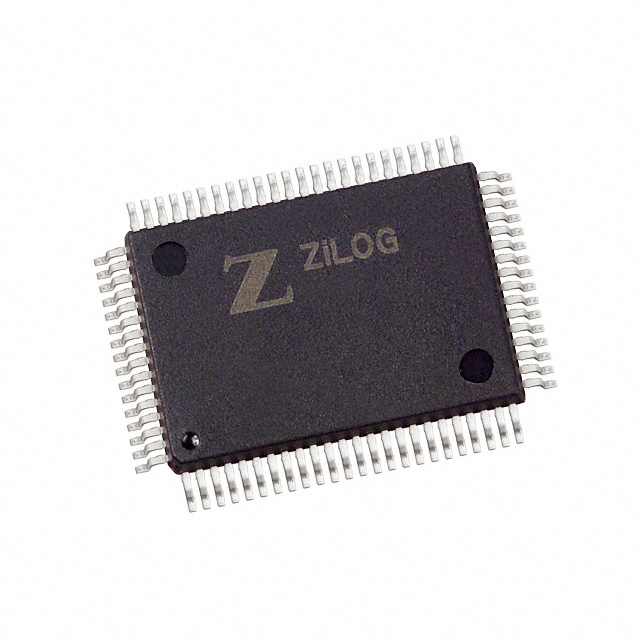

The Z8018010FSC is a Zilog Z180-series microprocessor featuring a single Z80180 8-bit core running at 10 MHz. It is supplied in an 80-pin QFP surface-mount package and is targeted at embedded, commercial-grade applications.

Key on-chip attributes include a DRAM controller, ASCI interface, 5 V I/O compatibility and commercial operating range, providing a compact, standards-oriented option for designers requiring a Z80180 core in a surface-mount 80-QFP footprint.

Key Features

• Core Single Z80180 8-bit core operating at 10 MHz for deterministic embedded processing.
• Memory Support Integrated DRAM controller to simplify system memory interfacing on board-level designs.
• Interfaces ASCI additional interface provided for serial communication needs.
• Power and I/O 5 V I/O voltage compatibility suitable for commercial embedded systems.
• Package and Mounting Supplied in an 80-BQFP / 80-QFP package with surface-mount mounting for compact PCB layouts.
• Operating Range Commercial grade operation from 0°C to 70°C for standard commercial environments.
• Environmental Compliance RoHS compliant to meet common regulatory and manufacturing requirements.

Typical Applications

• Commercial Embedded Systems — Use the Z8018010FSC where a single 8-bit Z80180 core and 10 MHz clocking meet control and processing needs in commercial equipment.
• Board-Level Designs with DRAM — Systems requiring an on-chip DRAM controller benefit from reduced external memory control complexity.
• Serial-Controlled Devices — Applications that require ASCI serial interfacing for device communication and control.
• Surface-Mount Implementations — Designs that need an 80-QFP surface-mount package for compact PCB integration.

Unique Advantages

• Well-defined 8-bit Z80180 Core: Delivers predictable instruction execution at 10 MHz for embedded control tasks.
• Integrated DRAM Controller: Reduces external logic and simplifies memory subsystem design.
• ASCI Interface Included: Supports serial communication needs without adding external interface components.
• Standard 5 V I/O: Ensures compatibility with common commercial logic levels and peripheral devices.
• Compact Surface-Mount Package: 80-BQFP / 80-QFP format suited for dense PCB layouts and automated assembly.
• RoHS Compliant: Meets common environmental and manufacturing process requirements.

Why Choose Z8018010FSC?

The Z8018010FSC positions the Z80180 core in a compact, surface-mount 80-QFP package with integrated DRAM control and ASCI interface, making it a focused solution for commercial embedded designs that require an 8-bit processor running at 10 MHz with 5 V I/O compatibility. Its commercial temperature rating and RoHS compliance align it with standard manufacturing and deployment environments.

This part is suited for engineers and procurement teams specifying a Zilog Z180-family microprocessor for board-level embedded systems where integration of memory control and serial interfacing in a surface-mount 80-pin footprint simplifies BOM and PCB layout considerations.

Request a quote or submit your requirements today to obtain pricing and availability for the Z8018010FSC.
