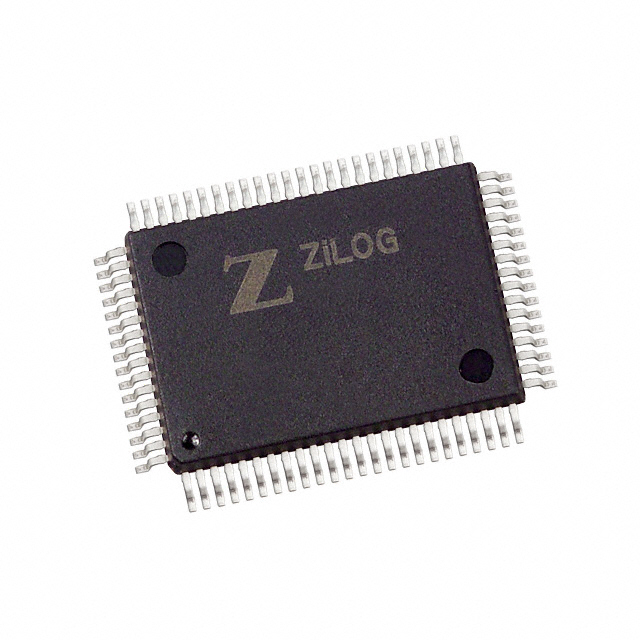

Z8018010FEG

The Z8018010FEG is a Zilog Z80180-based 8-bit microprocessor offered in a high-pin-count QFP package. It provides a single Z80180 core running at 10 MHz with integrated DRAM controller support and standard ASCI serial interface functionality for embedded applications.

Designed for embedded and industrial-grade designs, this surface-mount device combines a 5 V I/O interface with an extended operating temperature range for reliable operation in demanding environments.

Key Features

• Core and Performance Single Z80180 core with an 8-bit bus architecture operating at 10 MHz for deterministic control and processing.
• Memory Support Integrated DRAM controller capability to support external dynamic RAM configurations.
• Power and I/O 5 V I/O voltage compatibility for interfacing with legacy and industrial logic levels.
• Interfaces ASCI additional interface for serial communication and peripheral connectivity.
• Package and Mounting Available in an 80-pin BQFP package (supplier device package: 80-QFP) and specified for surface-mount assembly.
• Industrial Grade and Temperature Range Industrial grade device rated for operation from -40 °C to 100 °C for deployment in temperature-challenging environments.
• Compliance RoHS compliant to meet environmental material requirements.

Typical Applications

• Embedded Control Systems Use as an 8-bit control processor in embedded designs requiring deterministic execution and serial interfaces.
• Industrial Equipment Suited for industrial applications that need an industrial-grade component with an extended operating temperature range.
• Memory-Backed Designs Systems that require external DRAM support can leverage the integrated DRAM controller.
• Serial Communication Modules Applications requiring ASCI-based serial communications and 5 V I/O compatibility.

Unique Advantages

• Compact 80-pin QFP integration: High pin count in a surface-mount 80-BQFP/80-QFP package enables dense system designs and multiple I/O connections.
• Industrial temperature rating: Guaranteed operation from -40 °C to 100 °C for use in harsh or temperature-variable environments.
• Integrated DRAM controller: Reduces external memory interface complexity for designs that require dynamic RAM.
• 5 V I/O compatibility: Simplifies integration with existing 5 V logic and industrial peripherals.
• ASCI serial interface: Built-in serial communications support for control, monitoring, and peripheral interfacing.
• RoHS compliant: Conforms to environmental restrictions for material content.

Why Choose Z8018010FEG?

The Z8018010FEG positions a Z80180 8-bit core within an industrial-grade, surface-mount 80-QFP package, offering a balance of proven architecture, integrated DRAM control, and serial interface capability. Its 10 MHz clock and 5 V I/O compatibility make it suitable for embedded designs that require reliable, deterministic 8-bit processing.

Engineers designing for embedded control, industrial equipment, or memory-backed systems will find the Z8018010FEG a practical choice when extended temperature operation and RoHS compliance are required. The package and interface options support compact, production-ready implementations.

Request a quote or submit an inquiry to receive pricing and availability for the Z8018010FEG and to discuss how it fits your next embedded design.
