Z8018008VSG

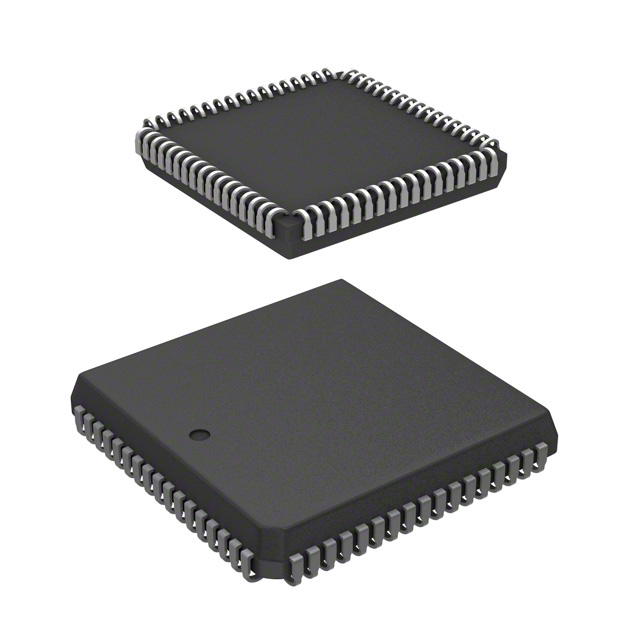

The Z8018008VSG is a Zilog Z80180-series microprocessor in a 68-PLCC surface-mount package. It implements a single Z80180 core with an 8-bit data path and an 8 MHz clock, designed for embedded applications requiring a commercial-grade 8‑bit MPU.

Key on-chip characteristics include a DRAM controller and an ASCI interface, 5 V I/O signaling, and an operating temperature range of 0 °C to 70 °C. The device is RoHS compliant and supplied in a 68-LCC (J‑Lead) package for compact board-level integration.

Key Features

• Core & Architecture Single Z80180 core with an 8‑bit bus width, targeted at embedded microprocessor applications.
• Clock Speed Operates at 8 MHz, providing deterministic timing for control and processing tasks.
• Power & I/O 5 V I/O voltage compatible with legacy 5 V systems and peripheral interfaces.
• Memory Support Integrated DRAM controller support to simplify external memory interfacing on the PCB.
• Interfaces Includes an ASCI interface for serial communication needs.
• Package & Mounting 68-LCC (J‑Lead) / 68‑PLCC supplier device package in a surface-mount form factor for compact board layouts.
• Operating Range & Grade Commercial grade with an operating temperature range of 0 °C to 70 °C.
• Environmental Compliance RoHS compliant for regulatory and manufacturing requirements.

Typical Applications

• Embedded System Control Use in embedded control applications that require an 8‑bit Z80180 core running at 8 MHz.
• Memory-Backed Designs Systems that benefit from on-chip DRAM controller support for external memory expansion.
• Board-Level Integration Surface-mount 68‑PLCC package suited to compact PCB layouts and through-hole replacement designs.
• 5 V Logic Environments Designs relying on 5 V I/O compatibility for interfacing with legacy peripherals and circuits.

Unique Advantages

• Single-Core Z80180 Implementation: Provides a focused 8‑bit processing solution using the Z80180 core for established embedded architectures.
• On-Board DRAM Controller: Reduces external component count and simplifies memory subsystem design by providing DRAM controller support.
• ASCI Interface: Built-in serial interface supports common asynchronous communications without additional interface chips.
• Surface-Mount 68‑PLCC Package: Compact 68-LCC (J‑Lead) package enables efficient board density and standard assembly processes.
• Commercial Temperature and RoHS Compliance: Commercial-grade temperature range (0 °C to 70 °C) and RoHS compliance help meet common regulatory and environmental requirements.

Why Choose Z8018008VSG?

The Z8018008VSG positions itself as a practical, integration-focused 8‑bit microprocessor option within the Zilog Z180 family. With an 8 MHz Z80180 core, DRAM controller, ASCI interface, and 5 V I/O, it addresses designs that require proven 8‑bit processing, memory interfacing, and serial communication in a compact surface‑mount PLCC package.

This device is suited for design teams and procurement organizations seeking a commercial-grade microprocessor with clear, verifiable specifications and RoHS compliance, enabling predictable integration into embedded platforms that operate within a 0 °C to 70 °C range.

Request a quote or submit an inquiry to receive pricing and availability for the Z8018008VSG microprocessor.
