Z8018008VSC

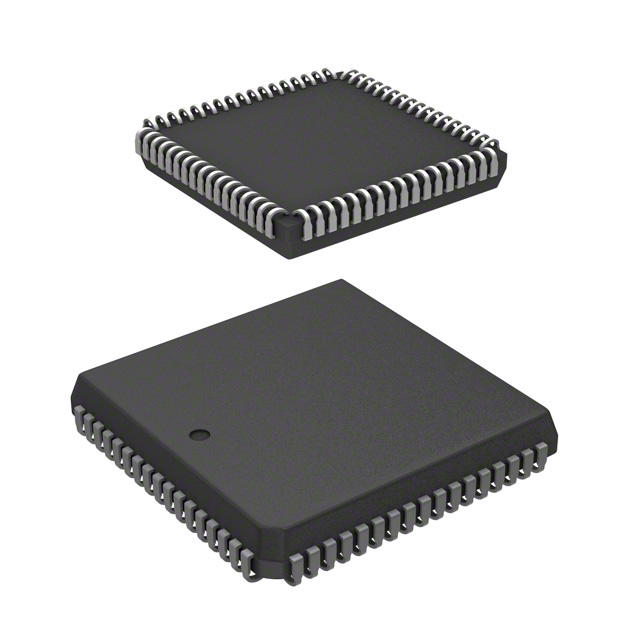

The Z8018008VSC is a Zilog Z80180-series microprocessor: a single-core, 8-bit MPU running at 8 MHz in a 68-pin PLCC surface-mount package. It is supplied as a commercial-grade device designed for embedded microprocessor applications.

With 5 V I/O, DRAM controller support and an ASCI interface, this part targets embedded designs that require a compact, board-mountable microprocessor solution within a 0 °C to 70 °C operating range.

Key Features

• Core  Z80180 single-core 8-bit processor providing the core architecture for embedded applications.
• Clock Speed  8 MHz operating frequency for time-deterministic processing at modest throughput levels.
• Voltage  5 V I/O voltage compatibility for interfacing with standard commercial logic levels.
• Memory Support  DRAM controller support to simplify external memory interfacing and system memory management.
• Interfaces  ASCI serial interface available for asynchronous serial communication needs.
• Package & Mounting  68-LCC (J-Lead) / 68-PLCC supplier device package in a surface-mount form factor for reliable PCB assembly.
• Grade & Temperature  Commercial grade with an operating temperature range of 0 °C to 70 °C.
• Compliance  RoHS compliant to meet common environmental requirements.

Typical Applications

• Commercial Embedded Systems  Suited for commercial embedded processor roles within the 0 °C to 70 °C temperature range.
• Board-Level Surface-Mount Designs  68-PLCC package supports surface-mount PCB layouts where PLCC mounting is required.
• Memory-Connected Systems  Systems that require DRAM controller support and serial connectivity via ASCI.

Unique Advantages

• Integrated Z80180 Core  Single-core, 8-bit Z80180 architecture provides a known microprocessor foundation for embedded designs.
• 5 V I/O Compatibility  Native 5 V I/O simplifies integration with standard commercial logic and peripherals.
• DRAM Controller Support  Built-in DRAM controller capability reduces external memory interface complexity.
• ASCI Serial Interface  On-chip ASCI simplifies asynchronous serial communications without added components.
• Surface-Mount 68-PLCC Package  Compact PLCC form factor supports reliable assembly and board density requirements.
• RoHS Compliant, Commercial Grade  Conforms to RoHS and is specified for 0 °C to 70 °C commercial operation.

Why Choose Z8018008VSC?

The Z8018008VSC positions the Z80180 core in a surface-mount 68-PLCC package with 5 V I/O, DRAM controller support and an ASCI interface—making it a practical choice for commercial embedded processor designs that require a compact, board-mountable microprocessor solution.

Its combination of Z80180 architecture, memory interface capability and commercial-grade specification makes it appropriate for designers seeking a consistent, verifiable component for embedded systems operating within standard commercial environments.

Request a quote or submit a purchase inquiry to obtain pricing and availability for the Z8018008VSC.
