Z8018008VEC

The Z8018008VEC is a Zilog Z80180 microprocessor offered as a single-core, 8-bit device running at 8 MHz. It is designed for embedded applications that require a compact, surface-mount microprocessor with integrated memory control and serial interface options.

With industrial-grade qualification, 5 V I/O and an extended operating temperature range, this device targets embedded and industrial system designs that demand stable operation across a wide temperature envelope and a PLCC package suitable for board-level integration.

Key Features

• Core & Performance Single Z80180 core with an 8 MHz clock delivering deterministic 8-bit processing for embedded control tasks.
• Memory & Controllers Integrated DRAM controller functionality to simplify memory interfacing and reduce external components.
• Interfaces Includes ASCI (asynchronous serial communication interface) to support serial peripheral and communications links.
• Power & I/O 5 V I/O voltage compatibility for designs that require standard TTL/CMOS signaling levels.

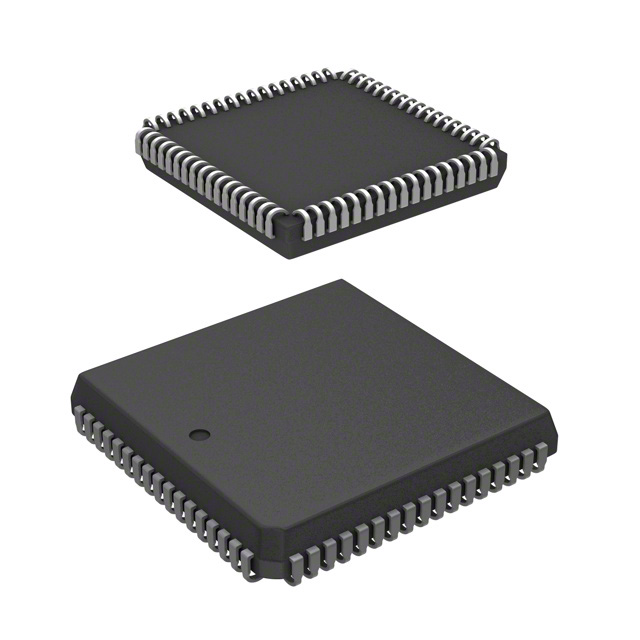

• Package & Mounting 68-pin PLCC (68-LCC J-Lead) supplier device package in a surface-mount form factor for compact board layouts.
• Environmental & Compliance Industrial grade device rated RoHS compliant for environmental regulatory alignment.
• Operating Temperature Range Specified for operation from −40 °C to 100 °C to meet demanding temperature requirements.
• Graphics No graphics acceleration—focused on control and embedded processing tasks.

Typical Applications

• Embedded Systems Suited for general embedded control applications that require an 8-bit Z80180 core and serial interface support.
• Industrial Control Industrial-grade temperature rating and 5 V I/O make it appropriate for control electronics and automation equipment.
• Board-Level Integration The 68-PLCC surface-mount package is useful for compact PCBs and systems that require PLCC form-factor components.

Unique Advantages

• Industrial Temperature Range: Operation from −40 °C to 100 °C supports deployments in harsh and variable environments.
• Integrated DRAM Controller: Reduces external memory interface complexity and BOM cost by providing on-chip memory control functionality.
• Serial Interface (ASCI): Built-in ASCI offers a ready path for asynchronous serial communications without additional interface components.
• 5 V I/O Compatibility: Simplifies integration into legacy and mixed-voltage systems that use standard 5 V signaling.
• Surface-Mount 68-PLCC Packaging: Enables compact board designs and reliable soldered mounting in production assemblies.
• RoHS Compliant: Meets environmental regulatory requirements for lead-free assembly processes.

Why Choose Z8018008VEC?

The Z8018008VEC combines the Z80180 8-bit core with on-chip DRAM control and serial interface capability in a compact 68-PLCC surface-mount package. Its industrial-grade specification and wide operating temperature range make it a practical choice for embedded and industrial designs that require steady, predictable 8-bit processing and 5 V I/O compatibility.

This part is suitable for engineers and procurement teams building or maintaining embedded systems where PLCC packaging, RoHS compliance, and rugged temperature performance are priorities. As a Zilog Z80180-based device, it provides a focused feature set for control-oriented applications and board-level integration.

Request a quote or submit a sales inquiry to receive pricing and availability for the Z8018008VEC. Provide your quantity and application details to expedite our response.
