Z8018008PSC

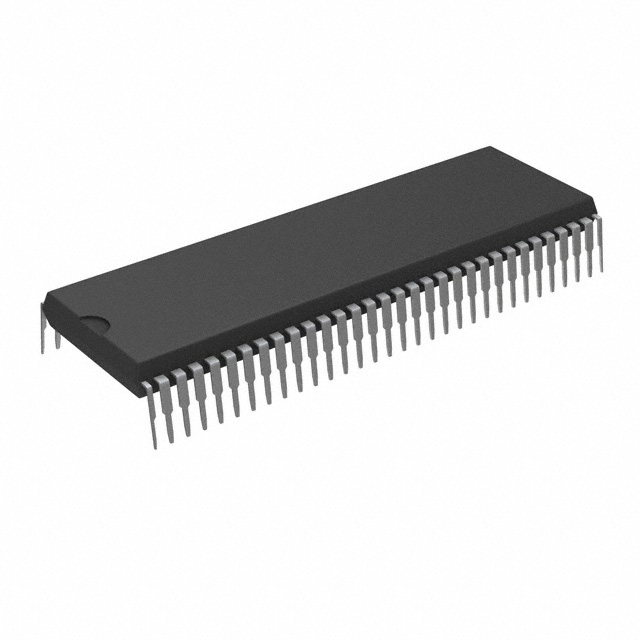

The Z8018008PSC is a Zilog Z80180 microprocessor offered in a 64-pin DIP through-hole package. It is a single-core, 8-bit MPU running at 8 MHz with 5 V I/O, designed for embedded applications that require classic through-hole mounting and straightforward voltage compatibility.

Targeted at embedded system designs and general-purpose microprocessor applications, this commercial-grade device integrates DRAM controller support and ASCI interface options to support memory-driven and serial-interface tasks in a compact, serviceable package.

Key Features

• Core & Architecture Z80180 core processor with a single 8-bit core operating at 8 MHz, suitable for standard embedded processing tasks.
• Operating Voltage 5 V I/O, providing compatibility with legacy 5 V logic environments.
• Memory Support DRAM controller capability to support external dynamic RAM in memory-centric designs.
• Interfaces Includes ASCI as an additional interface option for serial communication requirements.
• Package & Mounting 64-pin DIP (0.750", 19.05 mm) in a through-hole form factor for easy prototyping, assembly, and field replacement.
• Temperature & Grade Commercial grade device rated for operation from 0 °C to 70 °C.
• Environmental Compliance RoHS compliant, meeting common lead-free environmental requirements.

Typical Applications

• Embedded Control Suitable for compact control systems that benefit from an 8-bit MPU with DRAM support and serial interfaces.
• Instrumentation Useful in test and measurement equipment where through-hole mounting and 5 V I/O are required for integration or retrofitting.
• Education and Prototyping Through-hole 64-DIP package makes the part convenient for bench prototyping, curriculum use, and repairable development boards.
• Legacy System Maintenance Appropriate for replacing or upgrading existing boards that use 5 V logic and DIP form-factor components.

Unique Advantages

• Through-hole 64-DIP Packaging: Eases assembly, testing, and field replacement compared with surface-mount-only devices.
• 5 V I/O Compatibility: Direct compatibility with legacy 5 V logic systems simplifies integration on established designs.
• Integrated DRAM Controller: Provides built-in support for dynamic RAM, reducing the need for separate memory controller logic.
• ASCI Interface Included: Additional serial interface option to support common communication requirements without extra interface chips.
• RoHS Compliant: Meets lead-free environmental requirements for modern manufacturing processes.

Why Choose Z8018008PSC?

The Z8018008PSC positions itself as a practical, serviceable microprocessor option for embedded designs that rely on a single 8-bit core, 8 MHz operation, and 5 V I/O. Its 64-pin DIP through-hole package and DRAM controller support make it a strong fit for applications where repairability, memory-driven operation, and straightforward integration are priorities.

Manufactured by Zilog and offered as a commercial-grade component, this MPU is appropriate for engineers and procurement teams working on legacy-compatible systems, lab prototypes, and embedded products that require clear voltage compatibility, a defined operating temperature range, and RoHS compliance.

Request a quote or submit a purchasing inquiry today to check availability and lead times for the Z8018008PSC IC MPU Z180 8MHz 64-DIP.
