Z8018008PSG

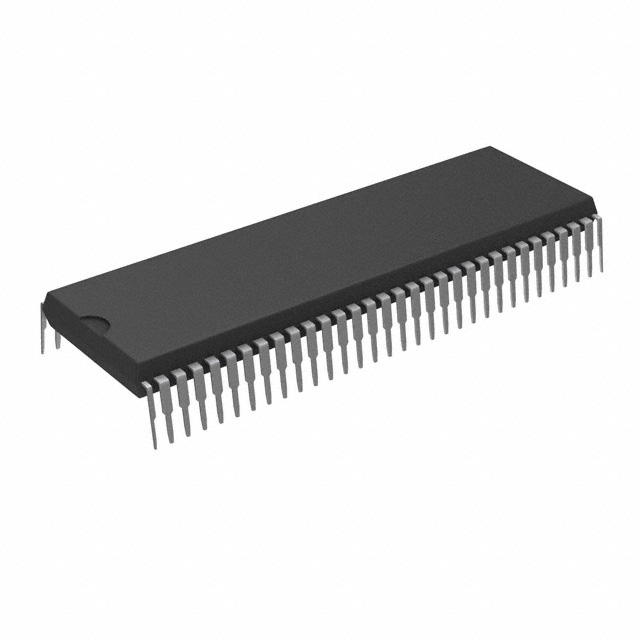

The Z8018008PSG is a Zilog Z80180-series microprocessor packaged in a 64-pin DIP (0.750", 19.05 mm) through-hole package. It implements a single 8-bit Z80180 core running at 8 MHz with 5 V I/O signaling.

Designed for embedded applications, this commercial-grade device integrates a DRAM controller and an ASCI interface, offering a compact, assembler-friendly solution for designs that require through-hole mounting and RoHS compliance.

Key Features

• Core & Performance Single Z80180 core, 8-bit architecture, operating at 8 MHz.
• Memory Support Integrated DRAM controller to manage external dynamic RAM.
• I/O Voltage 5 V I/O compatibility for standard logic-level interfacing.
• Interfaces ASCI serial interface for straightforward serial communication integration.
• Package & Mounting 64-pin DIP (0.750", 19.05 mm) package in a through-hole mounting style for easy socketing and prototyping.
• Operating Range & Grade Commercial grade with an operating temperature range of 0 °C to 70 °C.
• Environmental Compliance RoHS compliant.

Typical Applications

• Embedded Control Compact 8-bit processing for embedded control tasks where a single-core Z80180 architecture is appropriate.
• Prototyping & Development Through-hole 64-DIP package simplifies breadboarding, socketing, and iterative hardware development.
• Legacy System Support Suitable for maintenance or refurbishment of through-hole legacy boards that accept 64-pin DIP packages.
• Educational & Training Projects Commercial-grade, simple 8-bit architecture for hands-on learning and classroom demonstrations.

Unique Advantages

• Single-chip Z80180 core: Provides a familiar 8-bit processor architecture at a defined 8 MHz operating point for predictable performance.
• Integrated DRAM controller: Reduces external memory controller complexity and streamlines memory subsystem design.
• Through-hole 64-DIP package: Eases prototyping, socketed testing, and field replacement on legacy or hand-assembled boards.
• 5 V I/O compatibility: Works with common 5 V logic environments for straightforward integration with existing peripherals.
• ASCI serial interface: Built-in serial interface simplifies implementation of serial communications.
• RoHS compliant and commercial grade: Meets environmental compliance requirements and is specified for 0 °C to 70 °C operation.

Why Choose Z8018008PSG?

The Z8018008PSG combines the Z80180 single-core 8-bit architecture with integrated DRAM control and an ASCI interface in a through-hole 64-DIP package, providing a practical option for embedded designs that require 5 V I/O and easy prototyping or field serviceability. Its commercial-grade specification and RoHS compliance make it suitable for a range of standard embedded applications.

This part is appropriate for engineers and procurement teams seeking an established Zilog Z80180-series microprocessor in a through-hole form factor, backed by clear operating specifications and on-board memory control features that simplify board-level design.

Request a quote or submit a purchase inquiry to obtain pricing and availability for the Z8018008PSG and to evaluate fit for your next embedded design.
