Z8018010VEC00TR

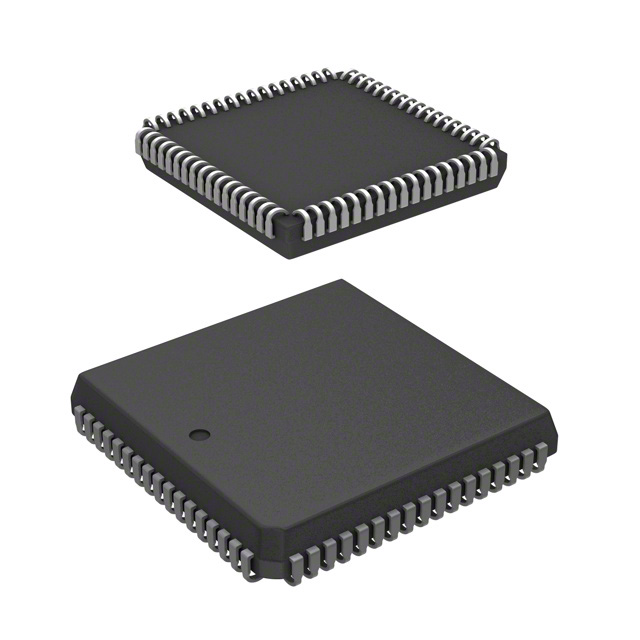

The Z8018010VEC00TR is a Zilog Z80180 microprocessor supplied in a 68‑lead PLCC surface‑mount package. It implements a single Z80180 8‑bit core running at 10 MHz and targets embedded applications requiring a compact, industrial‑grade controller.

Key integrations include a DRAM controller and an ASCI interface, and the device is specified for industrial ambient ranges with 5 V I/O and RoHS compliance, making it suitable for designs that need reliable operation across extended temperatures.

Key Features

• Core and Performance — Single Z80180 core with an 8‑bit bus width operating at 10 MHz for control and processing tasks.
• Memory Interface — Integrated DRAM controller to support external dynamic memory in embedded system designs.
• Serial Interface — ASCI additional interface for serial communication needs.
• Power and I/O — 5 V I/O voltage compatible with legacy and industrial logic levels.
• Package and Mounting — 68‑lead PLCC (J‑Lead) supplier device package in a surface‑mount form factor for compact PCB layouts.
• Industrial Temperature Range — Rated for operation from −40 °C to 100 °C, suitable for extended temperature environments.
• Environmental Compliance — RoHS compliant, supporting regulatory requirements for lead‑free assemblies.

Typical Applications

• Embedded Control Systems — Acts as a compact microprocessor for control tasks in embedded products where an 8‑bit core and DRAM support are required.
• Industrial Equipment — Industrial grade temperature range and 5 V I/O make it suitable for controllers and instrumentation operating in harsh environments.
• Memory‑Backed Designs — Integrated DRAM controller supports systems that rely on external dynamic memory for buffering or code storage.
• Serial Peripheral Interfaces — ASCI provides a serial communication path for peripheral interfacing and data exchange.

Unique Advantages

• Compact 8‑bit Processing at 10 MHz: Single Z80180 core delivering straightforward control performance for embedded tasks.
• Onboard DRAM Controller: Simplifies board-level memory integration by providing dedicated DRAM support.
• Industrial Temperature Rating: −40 °C to 100 °C specification enables deployment in temperature‑challenging applications.
• Standard 5 V I/O Compatibility: Ensures interoperability with common industrial and legacy logic families.
• Surface‑Mount 68‑PLCC Package: J‑lead PLCC package supports compact PCB designs while maintaining reliable mechanical mounting.
• RoHS Compliant: Meets lead‑free assembly requirements for modern manufacturing flows.

Why Choose Z8018010VEC00TR?

The Z8018010VEC00TR positions a proven Z80180 8‑bit core in a compact 68‑PLCC surface‑mount package with integrated DRAM control and ASCI connectivity. Its 10 MHz operating speed, 5 V I/O, and industrial temperature rating deliver a balanced combination of performance, integration, and robustness for embedded and industrial designs.

This part is suitable for customers seeking a reliable, RoHS‑compliant microprocessor solution for systems that require DRAM support, serial interfacing, and operation across an extended temperature range, backed by Zilog's Z80180 architecture.

Request a quote or submit a sales inquiry to receive pricing, availability, and ordering information for Z8018010VEC00TR.
