Z8018010VSC00TR

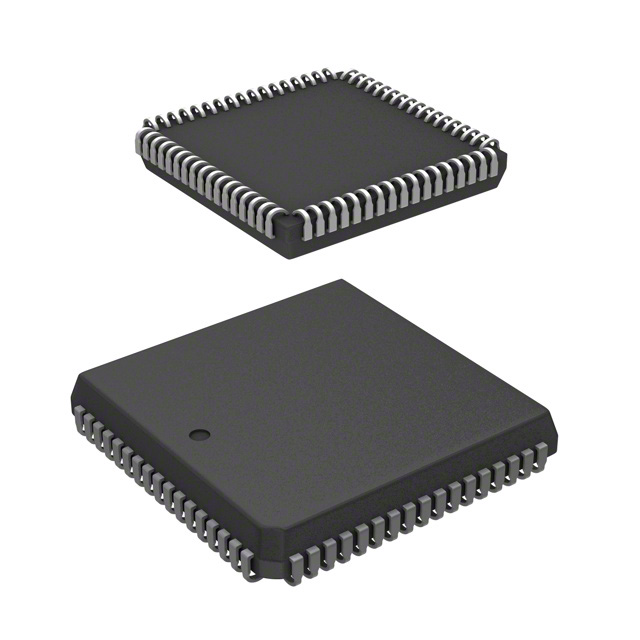

The Z8018010VSC00TR is a Zilog Z80180 microprocessor packaged in a 68-PLCC (68-LCC J‑Lead) surface-mount device. It implements a single Z80180 core with 8-bit data width and a rated clock speed of 10 MHz.

Designed for embedded applications in the commercial grade space, this device combines the Z80180 core with an integrated DRAM controller and an ASCI interface while operating from 5 V I/O and a 0 °C to 70 °C temperature window.

Key Features

• Core & Performance — Single Z80180 core with 8-bit bus width operating at 10 MHz, suitable for embedded microprocessor tasks.
• Memory Controller — Includes a DRAM controller to support external dynamic memory interfacing.
• Power and I/O — 5 V I/O voltage compatibility for integration with 5 V commercial systems.
• Interfaces — Provides an ASCI interface as an additional communications option.
• Package & Mounting — Supplied in a 68-LCC (J‑Lead) / 68‑PLCC package with surface-mount mounting type for compact board layouts.
• Grade & Temperature Range — Commercial grade device rated for operation from 0 °C to 70 °C.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Embedded Systems — Used in embedded systems that require an 8‑bit microprocessor core with integrated memory controller and serial interface options.
• Commercial Electronic Equipment — Suited for commercial-grade devices operating within a 0 °C to 70 °C range and 5 V I/O environments.
• Surface-Mount PLCC Designs — Appropriate for board designs that use 68‑PLCC packages and surface-mount assembly processes.

Unique Advantages

• Compact PLCC Surface-Mount Package: 68‑LCC (J‑Lead) / 68‑PLCC packaging supports space-efficient, surface-mount PCB layouts.
• Z80180 Single-Core Architecture: Provides 8-bit processing at 10 MHz using the Z80180 core for consistent performance characteristics.
• Integrated DRAM Controller: Simplifies external memory interfacing and can reduce overall BOM complexity.
• 5 V I/O Compatibility: Matches legacy and commercial 5 V system interfaces for straightforward integration.
• Commercial Temperature and RoHS Compliance: Rated 0 °C to 70 °C and RoHS compliant for commercial applications with environmental compliance needs.

Why Choose Z8018010VSC00TR?

Z8018010VSC00TR combines the Zilog Z80180 single 8‑bit core at 10 MHz with an integrated DRAM controller and ASCI interface in a compact 68‑PLCC surface-mount package. Its 5 V I/O compatibility, commercial temperature rating, and RoHS compliance make it a practical choice for commercial embedded designs that require proven 8‑bit processing and straightforward memory interfacing.

This part is well suited to teams maintaining or building commercial embedded systems that rely on the Z80180 architecture and need a PLCC surface-mount package with clearly specified electrical and environmental characteristics.

Request a quote or submit a pricing and availability inquiry for Z8018010VSC00TR to receive lead-time and quantity pricing information tailored to your project needs.
