Z8018110FEC

The Zilog Z8018110FEC is an embedded microprocessor IC featuring a Z80180 SAC™ single 8‑bit core running at 10 MHz. Designed as an industrial‑grade microprocessor, it integrates a DRAM controller and supports ASCI interfaces while operating from 5 V I/O.

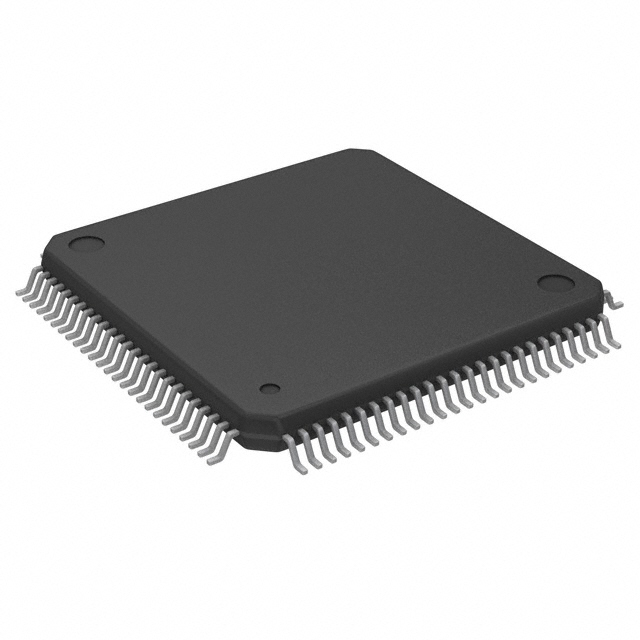

With a 100‑lead QFP surface‑mount package and an extended operating temperature range, this device targets embedded and industrial applications that require a compact, manufacturable 8‑bit processing solution.

Key Features

• Core — Z80180 SAC™ single 8‑bit core operating at 10 MHz, suited for deterministic control and embedded processing tasks.
• Memory Integration — Built‑in DRAM controller simplifies external memory interfacing and reduces system design complexity.
• Interfaces — ASCI additional interface support for serial communication requirements.
• Power and I/O — 5 V I/O compatibility for integration with legacy logic levels.
• Package and Mounting — 100‑QFP supplier device package in a surface‑mount format for high‑density PCB assembly.
• Operating Range — Industrial grade with operating temperature from −40°C to 100°C for broad environmental tolerance.
• Environmental Compliance — RoHS compliant for regulatory and manufacturing requirements.

Typical Applications

• Industrial Control — Embedded control tasks in automation and instrumentation where industrial temperature range and 5 V I/O are required.
• Embedded Systems — General embedded applications that leverage an 8‑bit core and integrated DRAM controller for compact system designs.
• Legacy and Maintenance — Replacement or continued production of systems based on 8‑bit architectures that need a surface‑mount 100‑QFP package.

Unique Advantages

• Compact 100‑QFP surface‑mount package: Facilitates high‑density PCB layouts and standard SMT assembly processes.
• Integrated DRAM controller: Reduces external memory interface complexity and lowers bill of materials.
• Industrial temperature tolerance: −40°C to 100°C operation supports deployments in demanding environments.
• 5 V I/O compatibility: Eases integration with existing 5 V logic systems and legacy peripherals.
• Single 8‑bit Z80180 core at 10 MHz: Provides stable, deterministic performance for control and peripheral handling.
• RoHS compliant: Meets environmental manufacturing requirements for many production programs.

Why Choose Z8018110FEC?

The Z8018110FEC delivers a focused combination of an integrated DRAM controller, ASCI interface support, and a single Z80180 8‑bit core in a compact 100‑QFP package. Its industrial grade designation and −40°C to 100°C operating range make it well suited to embedded designs that require reliable operation across a wide temperature span.

Manufactured by Zilog as part of the Z180 (Z80181) series, this device is appropriate for engineers and procurement teams seeking a straightforward, manufacturable microprocessor solution for industrial and embedded applications that rely on 5 V I/O and proven 8‑bit processing.

Request a quote or submit a pricing and availability inquiry to receive more information and order options for the Z8018110FEC.
