Z84C0020FEC00TR

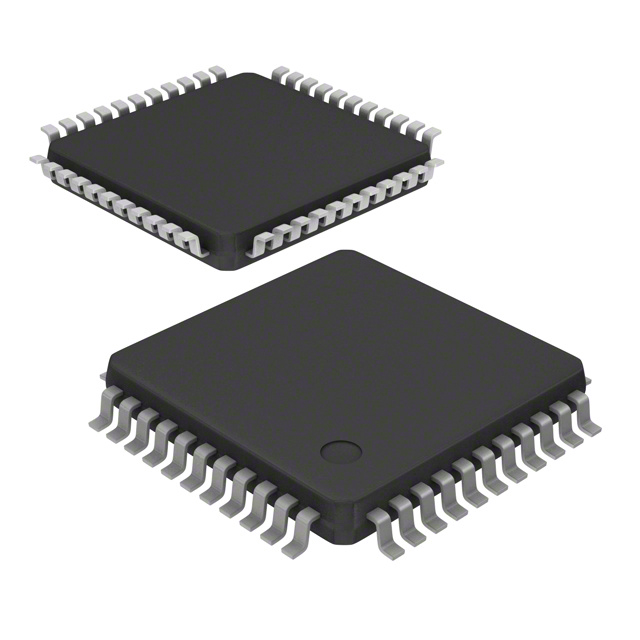

The Z84C0020FEC00TR is an industrial-grade Zilog Z80 microprocessor in a surface-mount 44-LQFP (10×10) package. It implements a single 8-bit Z80 core running at 20 MHz with 5 V I/O, designed for embedded and industrial applications requiring a compact, board-mounted MPU.

With an operating temperature range of −40 °C to 100 °C and RoHS compliance, this device targets embedded designs that demand reliable operation across extended temperature environments and standard 5 V systems.

Key Features

• Core & Architecture Single Z80 core with 8-bit data width, providing straightforward integration into 8-bit embedded designs.
• Clock Speed 20 MHz operating frequency suitable for moderate processing tasks within embedded applications.
• Power & I/O 5 V I/O compatibility for use in traditional 5 V system environments.
• Package & Mounting 44-LQFP (10×10) surface-mount package for compact PCB layouts and automated assembly.
• Industrial Grade Rated for industrial use with an operating temperature range of −40 °C to 100 °C.
• Regulatory RoHS compliant, aligning with common environmental and manufacturing requirements.

Typical Applications

• Embedded Systems Suited for a wide range of embedded controller roles where an 8-bit Z80 core and 20 MHz operation meet system requirements.
• Industrial Equipment Industrial-grade temperature rating supports deployment in factory automation or other industrial electronics.
• Surface-Mount PCB Designs 44-LQFP surface-mount package is appropriate for modern PCB assembly and compact layouts.

Unique Advantages

• Z80 Architecture: Single 8-bit Z80 core simplifies integration into designs that require classic 8-bit processing.
• Extended Temperature Operation: −40 °C to 100 °C rating enables reliable operation across a wide range of industrial environments.
• 5 V I/O Compatibility: Native 5 V I/O helps maintain compatibility with legacy and existing 5 V peripherals and interfaces.
• Compact Surface-Mount Package: 44-LQFP (10×10) package supports space-efficient PCB layouts and automated manufacturing processes.
• Regulatory Compliance: RoHS compliance supports environmentally conscious manufacturing and supply chain requirements.
• Industrial Grade Design: Component grade and specification set are targeted toward embedded and industrial use cases.

Why Choose Z84C0020FEC00TR?

The Z84C0020FEC00TR delivers a single-core 8-bit Z80 solution at 20 MHz in a compact 44-LQFP surface-mount package, combining straightforward 5 V I/O compatibility with an industrial temperature range. It is positioned for embedded and industrial designs that require reliable, board-mounted microprocessor functionality.

Designers seeking a durable, RoHS-compliant Z80-based MPU for applications in industrial environments or compact PCB assemblies will find the Z84C0020FEC00TR a specification-aligned option that supports standard 5 V systems and automated surface-mount manufacturing.

Request a quote or submit a purchasing inquiry to receive pricing and availability information for the Z84C0020FEC00TR.
