Z84C0020AEG

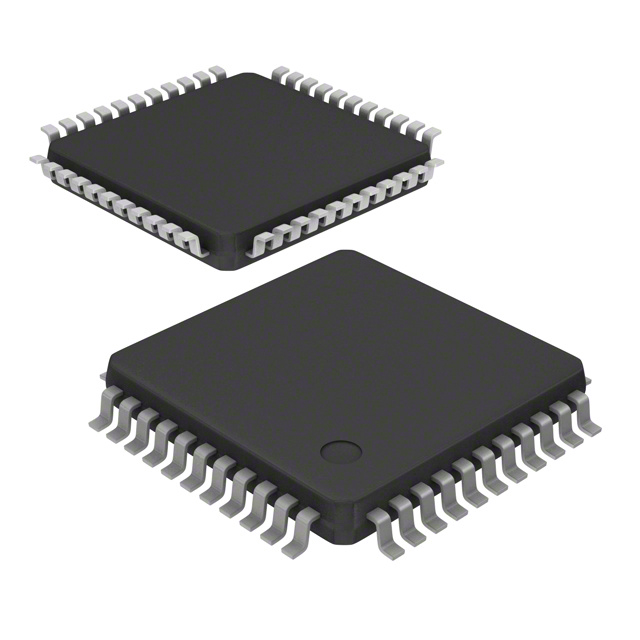

The Z84C0020AEG is a Zilog Z80-based microprocessor in a single-core, 8-bit configuration running at 20 MHz. Packaged in a 44-LQFP (10×10) surface-mount case and specified to industrial-grade standards, it is targeted for embedded microprocessor applications.

With a 5 V I/O interface and an operating temperature range of -40 °C to 100 °C, this device addresses designs that require a compact LQFP package, industrial temperature performance, and RoHS-compliant components.

Key Features

• Core Architecture  The Z84C0020AEG implements the Z80 core as a single 8-bit processor core.
• Clock Speed  Rated for 20 MHz operation to meet mid-range embedded timing requirements.
• Voltage I/O  Uses a 5 V I/O supply for compatible system-level interfacing.
• Industrial Grade & Temperature Range  Industrial-grade device specified for an operating range of -40 °C to 100 °C.
• Package & Mounting  Supplied in a 44-LQFP (10×10) package optimized for surface-mount PCB assembly.
• Environmental Compliance  RoHS compliant for environmentally regulated designs.
• Graphics Acceleration  No graphics acceleration—dedicated to general-purpose 8-bit microprocessor functions.

Typical Applications

• Embedded Control  Use as the main processing element in embedded control systems that require an 8-bit microprocessor core and 20 MHz operation.
• Industrial Automation  Industrial-grade temperature rating makes it suitable for control and instrumentation in industrial environments.
• Instrumentation  Compact LQFP package and surface-mount mounting support instrumentation and measurement device designs.
• Prototyping and Development  Appropriate for embedded development projects that require a Z80 architecture in a surface-mount form factor.

Unique Advantages

• Industrial Temperature Capability: Operates from -40 °C to 100 °C, enabling deployment in demanding thermal environments.
• Z80 Core Architecture: Provides a single 8-bit core based on the Z80 family, offering straightforward integration into embedded designs.
• Standard 5 V I/O: Simplifies power-rail design by using a common 5 V I/O voltage.
• Surface-Mount 44-LQFP Package: The 10×10 44-LQFP package supports compact PCB layouts and automated assembly.
• RoHS Compliant: Meets lead-free environmental requirements for regulated manufacturing and procurement.

Why Choose Z84C0020AEG?

The Z84C0020AEG combines the Zilog Z80 8-bit core with a 20 MHz clock rate in a compact 44-LQFP surface-mount package, specified to industrial-grade temperature limits and RoHS compliance. Its 5 V I/O and single-core architecture make it a practical choice for embedded designers seeking a familiar microprocessor platform with robust thermal range.

This part is well suited to engineers and OEMs developing embedded controllers, instrumentation, or industrial automation equipment where package density, industrial temperature performance, and a standardized 5 V interface are important considerations. As a member of the Z80 series from Zilog, it provides a clear hardware option for designs that require these measured, verifiable attributes.

Request a quote for Z84C0020AEG or submit a purchasing inquiry to include this industrial-grade Z80 microprocessor in your next embedded design.
