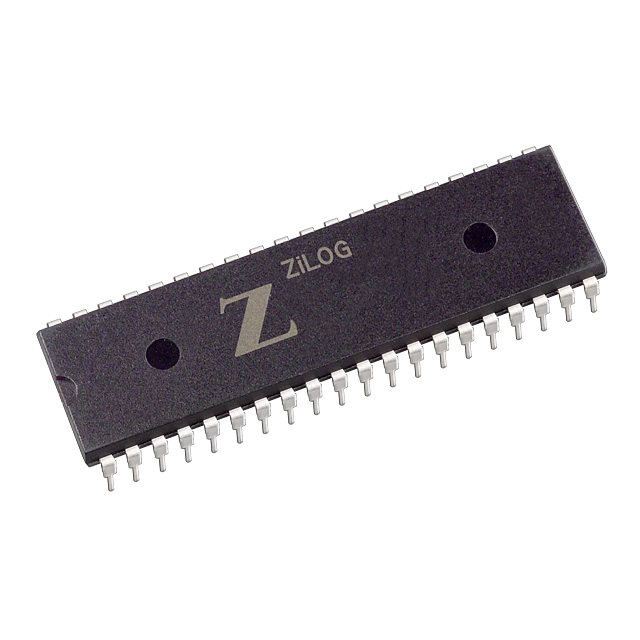

Z84C0010PEG

The Z84C0010PEG is a Zilog Z80 family microprocessor featuring a single 8-bit core running at 10 MHz. Designed for embedded applications, this industrial-grade MPU offers a classic Z80 architecture in a through-hole 40‑pin PDIP package suitable for board-level designs and replacements.

Key value comes from its 10 MHz operating speed, 5 V I/O compatibility, wide operating temperature range, and a 40‑DIP footprint that supports easy assembly and serviceability in industrial and embedded environments.

Key Features

• Core & Architecture Single Z80 core with an 8-bit bus width operating at 10 MHz, providing established Z80 functionality for embedded designs.
• Power 5 V I/O voltage compatibility for straightforward integration with standard 5 V logic systems.
• Package & Mounting 40-PDIP (0.620", 15.75 mm) through-hole package simplifies prototyping, assembly, and field service.
• Grade & Temperature Range Industrial-grade device with an operating temperature range of -40 °C to 100 °C for use in temperature-demanding environments.
• RoHS Compliant Meets RoHS environmental requirements for lead-free manufacturing and regulatory compliance.

Typical Applications

• Embedded Control Use in embedded systems that require a proven 8-bit microprocessor with 5 V I/O and through-hole mounting for ease of assembly.
• Industrial Automation Suited for control and interface tasks in industrial equipment where the -40 °C to 100 °C operating range is required.
• Prototyping and Development The 40‑pin PDIP format supports rapid prototyping, breadboarding, and educational use.

Unique Advantages

• Proven Z80 Architecture: Single 8-bit Z80 core provides a familiar instruction set for maintenance and legacy integration.
• 10 MHz Performance: Defined operating speed for predictable timing and system behavior in embedded applications.
• Industrial Temperature Rating: -40 °C to 100 °C specification supports deployment in harsh temperature environments.
• Standard PDIP Packaging: 40‑pin PDIP (0.620", 15.75 mm) enables easy through-hole assembly, replacement, and repairability.
• 5 V I/O Compatibility: Direct compatibility with standard 5 V logic simplifies system design and interfacing.
• RoHS Compliant: Environmentally compliant for lead-free manufacturing processes.

Why Choose Z84C0010PEG?

The Z84C0010PEG positions itself as a practical choice for engineers needing a Z80-class, single-core 8-bit microprocessor with defined 10 MHz performance, industrial temperature tolerance, and a standard through-hole PDIP package. Its combination of 5 V I/O and RoHS compliance makes it suitable for embedded and industrial designs that require straightforward integration and serviceability.

This device is ideal for designers focused on embedded control, industrial interface tasks, or projects that benefit from a widely understood Z80 architecture and a removable, serviceable package format.

Request a quote or submit an inquiry to check pricing and availability for the Z84C0010PEG. Our team can provide lead-time and ordering information to support your design and procurement needs.
