Z84C0010FEC

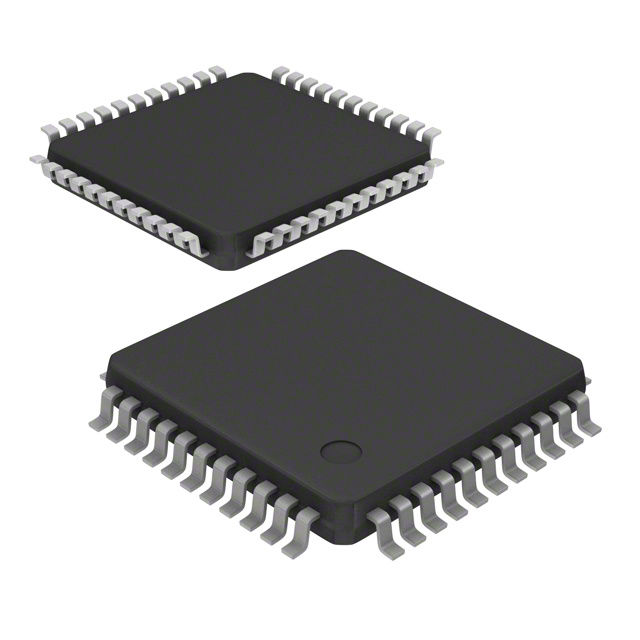

The Z84C0010FEC is a Z80-core microprocessor IC designed for embedded applications. It implements a single 8-bit Z80 core running at 10 MHz with 5 V I/O and is offered in a 44-pin LQFP surface-mount package.

Targeted at industrial environments, this device provides a compact, industry-grade option for designs that require a proven 8-bit processor and a wide operating temperature range from −40 °C to 100 °C.

Key Features

• Core and Architecture Single Z80 core, 8-bit architecture suitable for legacy Z80-based designs and embedded control tasks.
• Performance 10 MHz clock speed for deterministic 8-bit processing in control and interface applications.
• Supply and I/O 5 V I/O voltage level compatible with standard TTL/CMOS 5 V systems.
• Package and Mounting 44-LQFP (10×10 mm) surface-mount package, enabling compact PCB layouts and high-density SMT assembly.
• Industrial Grade Temperature Operating temperature range −40 °C to 100 °C for reliability in industrial and harsh-environment applications.
• Compliance RoHS-compliant construction to meet common environmental and manufacturing requirements.

Typical Applications

• Industrial Embedded Control Use as a deterministic 8-bit controller in industrial instrumentation and control modules operating across a wide temperature range.
• Legacy System Maintenance Suitable for repair, replacement, or continuation of existing Z80-based designs where form-fit-function and compatibility are required.
• Compact SMT Designs The 44-LQFP package supports compact, surface-mount board layouts for space-constrained embedded products.
• Embedded I/O and Interface Tasks Well suited to handle peripheral interfacing and control duties in 5 V embedded systems.

Unique Advantages

• Proven Z80 Core Provides a familiar 8-bit architecture for engineers maintaining or extending Z80-series designs.
• Industrial Temperature Capability −40 °C to 100 °C rating supports deployment in harsh and temperature-variable environments.
• SMT-Friendly Package 44-LQFP (10×10 mm) enables high-density PCB integration and automated assembly processes.
• Standard 5 V I/O Direct compatibility with 5 V logic simplifies interfacing with existing peripherals and board-level components.
• RoHS Compliant Helps meet environmental manufacturing requirements without additional component-level processing.

Why Choose Z84C0010FEC?

The Z84C0010FEC positions itself as a reliable, industry-grade 8-bit microprocessor option for embedded designs that require a Z80 core, 10 MHz operation, and 5 V I/O in a compact surface-mount package. Its −40 °C to 100 °C operating range and RoHS compliance make it suitable for long-lived industrial applications and board-level replacements.

Designed as part of the Zilog Z80 family, this device is appropriate for engineers maintaining legacy systems or developing new embedded products that depend on the proven Z80 architecture, compact LQFP packaging, and industrial-temperature operation.

Request a quote or submit an inquiry to obtain pricing and availability for Z84C0010FEC for your next design or production run.
