Z84C0010FEC00TR

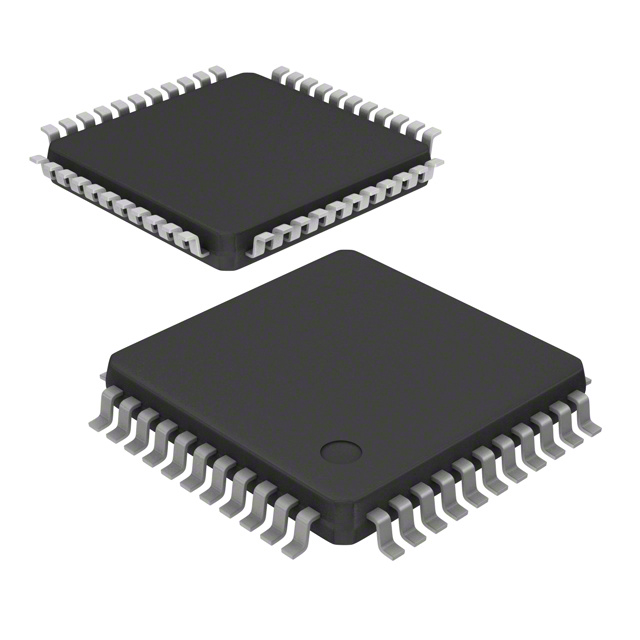

The Z84C0010FEC00TR is a Zilog Z80 microprocessor in a single-core, 8-bit architecture running at 10 MHz. It is supplied in a 44-LQFP (10×10 mm) surface-mount package and is offered as an industrial-grade device.

Designed for embedded applications, this device delivers established Z80 core functionality with a 5 V I/O interface and an extended operating temperature range of −40 °C to 100 °C, making it suitable for demanding environments where industrial temperature performance is required.

Key Features

• Core  Single Z80 core with an 8-bit data width, providing established microprocessor architecture for embedded designs.
• Performance  10 MHz clock speed for deterministic 8-bit processing in control and embedded tasks.
• Voltage  5 V I/O supply, compatible with legacy 5 V embedded signaling domains.
• Package & Mounting  44-LQFP package (10×10 mm) in a surface-mount form factor for compact PCB implementation.
• Industrial Grade & Temperature Range  Rated for industrial applications with an operating temperature range of −40 °C to 100 °C.
• Compliance  RoHS-compliant for environmental and manufacturing standards.

Typical Applications

• Embedded Systems  A compact 8-bit microprocessor solution for embedded control tasks where a Z80 core is appropriate.
• Industrial Equipment  Industrial-grade temperature rating supports deployment in factory and field equipment with extended temperature demands.
• Surface-Mount PCB Designs  44-LQFP (10×10) surface-mount package enables space-efficient board layouts in compact embedded products.

Unique Advantages

• Established Z80 Architecture: Leverages a single 8-bit Z80 core for straightforward integration into designs that require proven microprocessor behavior.
• Industrial Temperature Range: −40 °C to 100 °C rating supports reliable operation across a wide range of environmental conditions.
• Standard 5 V I/O: Native 5 V I/O simplifies interfacing with existing 5 V systems and peripherals.
• Compact Surface-Mount Package: 44-LQFP (10×10 mm) facilitates high-density PCB layouts and automated assembly processes.
• RoHS Compliance: Meets environmental manufacturing requirements for restricted substances.

Why Choose Z84C0010FEC00TR?

The Z84C0010FEC00TR combines the familiar Z80 8-bit core with industrial-grade specifications—10 MHz operation, 5 V I/O, and an extended −40 °C to 100 °C temperature range—in a compact 44-LQFP surface-mount package. This combination positions the device for embedded and industrial designs that prioritize reliable 8-bit processing and straightforward board-level integration.

Engineers selecting the Z84C0010FEC00TR benefit from a predictable, proven microprocessor architecture and a package form factor suited to modern surface-mount production, delivering long-term value for applications that require robustness and compatibility with 5 V embedded domains.

Request a quote or submit a pricing inquiry today to evaluate the Z84C0010FEC00TR for your embedded or industrial designs.
