Z84C0010PEC

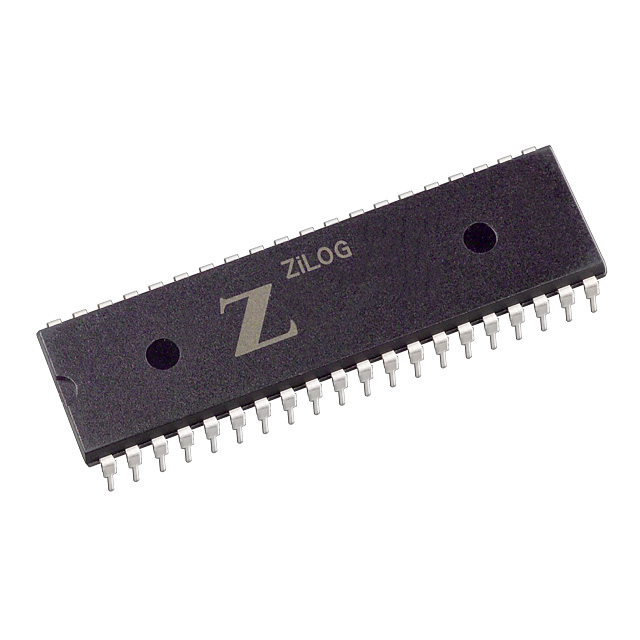

The Z84C0010PEC is a Zilog Z80 microprocessor packaged as a single-core, 8-bit device with a 10 MHz clock rate. It is supplied in a 40-pin PDIP (through-hole) package and is categorized for embedded microprocessor applications.

Engineered as an industrial-grade component, the device operates from standard 5 V I/O levels and supports an operating temperature range of -40 °C to 100 °C. It is RoHS compliant for environmental manufacturing requirements.

Key Features

• Core / Architecture Single Z80 core with an 8-bit data bus delivering classic microprocessor functionality in a compact package.
• Clock Speed 10 MHz operating frequency suitable for timing-deterministic embedded tasks.
• Power 5 V I/O voltage for compatibility with standard embedded voltage domains.
• Grade & Temperature Range Industrial grade device rated for operation from -40 °C to 100 °C.
• Package & Mounting 40-DIP (0.620", 15.75 mm) 40-PDIP package designed for through-hole mounting, socketing, and board-level assembly.
• Environmental Compliance RoHS compliant.
• Graphics No graphics acceleration (not applicable to this microprocessor).

Typical Applications

• Industrial Embedded Control Use in embedded controllers and industrial electronics that require an industrial temperature rating and 5 V I/O.
• Through-Hole Prototyping and Repair 40-DIP through-hole package is suitable for rapid prototyping, socket-based development, and board-level repairs.
• Microprocessor-Based Embedded Designs Suitable for single-core 8-bit embedded designs within the embedded systems category.

Unique Advantages

• Industrial Temperature Capability: Rated from -40 °C to 100 °C to support operation across wide temperature ranges.
• Standard Through-Hole Form Factor: 40-DIP (0.620", 15.75 mm) package simplifies prototyping, socket use, and replacement on legacy boards.
• Classic Z80 Architecture: Single 8-bit core at 10 MHz provides a familiar microprocessor implementation for embedded projects.
• 5 V I/O Compatibility: Matches common embedded and legacy voltage domains for straightforward system integration.
• RoHS Compliant: Meets environmental restrictions for modern manufacturing processes.

Why Choose Z84C0010PEC?

The Z84C0010PEC positions itself as a straightforward, industrial-grade Z80 microprocessor option for embedded applications that require a 40-pin through-hole package and standard 5 V I/O. Its single-core 8-bit architecture at 10 MHz and broad operating temperature range make it suitable for designs that prioritize a proven microprocessor form factor and durability.

This part is appropriate for engineers working on embedded system implementations, through-hole prototyping, or board-level maintenance where RoHS compliance and industrial temperature operation are required. It is provided by Zilog as part of the Z80 family of microprocessors.

Request a quote or submit an inquiry for pricing and availability of Z84C0010PEC to receive product and order information.
