Z84C0020VEG

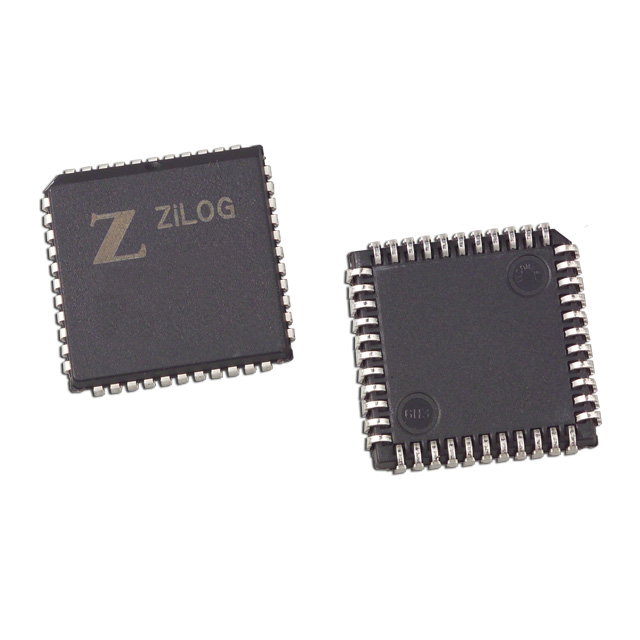

The Z84C0020VEG is a Zilog Z80 microprocessor IC featuring a single 8-bit core running at 20 MHz. Packaged in a 44-pin PLCC surface-mount package and specified for industrial-grade operation, it is suited to embedded designs requiring a proven 8-bit CPU architecture.

Typical markets include embedded and industrial applications where a compact surface-mount Z80 solution, broad operating temperature range, and 5 V I/O compatibility are required.

Key Features

• Core Architecture — Z80 single 8-bit core providing established instruction set compatibility for legacy and embedded designs.
• Operating Speed — 20 MHz clock rate for deterministic control and processing in time-sensitive embedded tasks.
• Voltage — 5 V I/O level compatible with common legacy and industrial logic systems.
• Industrial Grade — Grade listed as Industrial with an operating temperature range of -40 °C to 100 °C for reliable performance in harsh environments.
• Package & Mounting — 44-lead PLCC supplier package (44-LCC J-Lead) in a surface-mount form factor to support compact PCB layouts and automated assembly.
• Standards Compliance — RoHS compliant, meeting common environmental requirements for electronic components.

Typical Applications

• Industrial Control — Use the Z84C0020VEG for embedded controllers and PLC interfaces where an industrial temperature range and 5 V I/O are required.
• Legacy System Maintenance — Suitable for refurbishing or maintaining existing Z80-based systems thanks to its Z80 core architecture and 44-pin PLCC package footprint.
• Instrumentation — Embed the part in measurement and monitoring devices that benefit from an 8-bit control processor with a -40 °C to 100 °C operating range.

Unique Advantages

• Proven Z80 Architecture: Provides a widely recognized 8-bit instruction set for compatibility with established firmware and development knowledge.
• Industrial Temperature Range: Rated from -40 °C to 100 °C to support deployment in demanding environmental conditions.
• Surface-Mount PLCC Package: 44-PLCC enables compact PCB designs and modern assembly processes while matching legacy PLCC footprints.
• 5 V I/O Compatibility: Directly interfaces with common industrial and legacy logic levels, simplifying system integration.
• RoHS Compliant: Conforms to environmental regulations for lead-free assembly and global market requirements.
• Manufacturer Backing: Supplied by Zilog, aligning the device with a recognized vendor of Z80 series processors.

Why Choose Z84C0020VEG?

The Z84C0020VEG delivers a straightforward, industrial-grade Z80 microprocessor solution combining a 20 MHz operating speed, 5 V I/O compatibility, and a robust -40 °C to 100 °C temperature rating. Its 44-pin PLCC surface-mount package makes it suitable for both compact new designs and maintenance of legacy boards that require a dependable Z80 CPU.

This part is ideal for engineers and procurement teams seeking a vendor-backed Z80 member for embedded and industrial applications where proven architecture, environmental tolerance, and RoHS compliance are priorities.

Request a quote or submit a procurement inquiry today to evaluate the Z84C0020VEG for your next embedded or industrial design.
