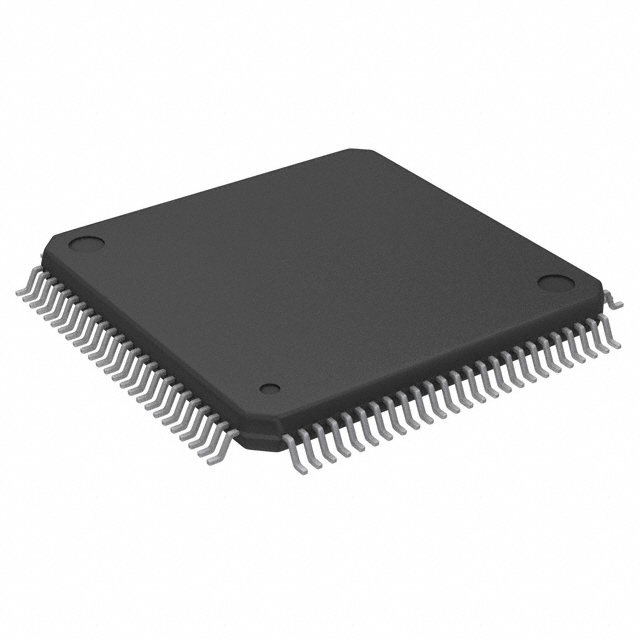

Z84C1506FEC00TR

The Z84C1506FEC00TR is an industrial-grade microprocessor based on the Z80 core, delivering an 8-bit architecture running at 6 MHz. It is supplied in a 100-QFP surface-mount package and targets embedded and industrial applications that require a compact, standards-based MPU.

With single-core operation, 5 V I/O compatibility and an operating temperature range from -40 °C to 100 °C, this device is suited for embedded systems where temperature tolerance and a proven 8-bit core are important design considerations.

Key Features

• Core & Performance  Z80 single-core 8-bit processor running at 6 MHz for established 8-bit embedded processing.
• Power & I/O  5 V I/O voltage simplifies integration with legacy 5 V systems and related peripherals.
• Package & Mounting  100-QFP supplier device package designed for surface-mount assembly, supporting compact PCB layouts.
• System Reliability  Industrial-grade device with an integrated WDT (watchdog timer) interface to assist in system supervision.
• Environmental Range  Rated for operation from -40 °C to 100 °C to meet broad industrial temperature requirements.
• Form Factor  Single-core, 8-bit configuration suited to deterministic, low-complexity embedded control tasks.
• Regulatory  RoHS compliant, supporting environmentally conscious designs.

Typical Applications

• Industrial Control Equipment  Used in embedded control tasks where an industrial-grade 8-bit MPU and wide temperature range are required.
• Embedded Systems  Suitable for compact, surface-mount designs that need a proven Z80 core and 5 V I/O compatibility.
• Instrumentation  Appropriate for measurement and monitoring devices that benefit from a deterministic 8-bit processor and watchdog supervision.

Unique Advantages

• Proven Z80 Core: Leverages the well-known Z80 8-bit architecture for straightforward integration into existing 8-bit designs.
• Industrial Temperature Range: Operates from -40 °C to 100 °C, enabling deployment in demanding thermal environments.
• 5 V I/O Compatibility: Direct compatibility with 5 V systems reduces the need for additional level-shifting components.
• Surface-Mount 100-QFP Package: Compact, manufacturable package suitable for dense PCB layouts and automated assembly.
• On-Chip Watchdog Interface: WDT support helps improve system robustness by enabling supervised operation.
• RoHS Compliant: Meets environmental compliance requirements for lead-free manufacturing.

Why Choose Z84C1506FEC00TR?

The Z84C1506FEC00TR positions itself as a reliable industrial-grade 8-bit MPU option for embedded designers requiring a 6 MHz Z80 core in a 100-QFP surface-mount package. Its combination of 5 V I/O, watchdog interface, and extended operating temperature range makes it appropriate for a range of embedded and industrial applications where stability and established architecture matter.

Designed for engineers targeting compact, manufacturable boards, this Zilog part offers a clear specification set that supports predictable integration and long-term deployment in temperature-challenging environments.

Request a quote or submit a purchase inquiry for the Z84C1506FEC00TR to get pricing and availability information tailored to your project needs.
