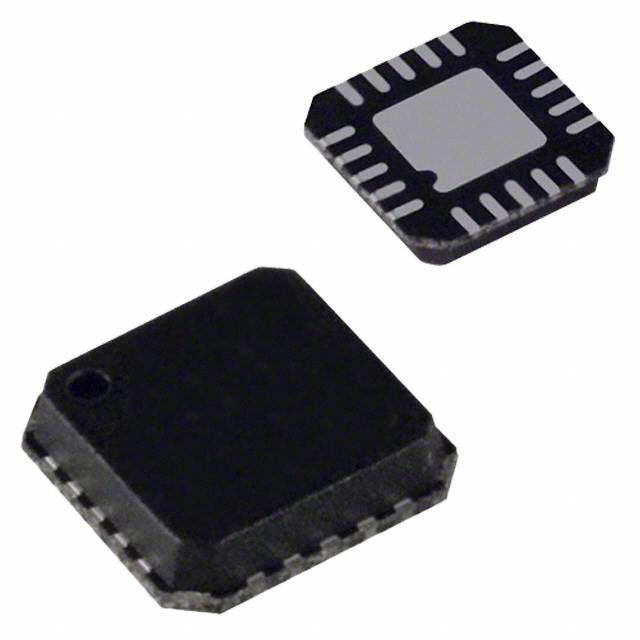

ADG936BCPZ-RL
IC RF SWITCH 2XSPDT 2GHZ 20LFCSP
| Part Description |
RF Switch IC General Purpose 2 x SPDT 50Ohm 20-LFCSP (4x4) |
|---|---|
| Quantity | 875 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 20-WFQFN Exposed Pad, CSP |
|---|---|
| Device Package | 20-LFCSP (4×4) |
| Mounting Method | Surface Mount |
| Voltage | 1.65V ~ 2.75V |
| Operating Temperature | -40°C ~ 85°C |
| RF Type: | General Purpose |
| Topology: | Absorptive |
| Circuit: | 2 x SPDT |
| Frequency Range: | 0Hz ~ 2GHz |
| Isolation: | 36dB |
| Insertion Loss: | 0.9dB |
| Test Frequency: | 1GHz |
| P1dB: | 16dBm |
| IIP3: | 32dBm |
| Features: | Single Line Control |
| Impedance: | 50Ohm |
| Voltage – Supply: | 1.65V ~ 2.75V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
