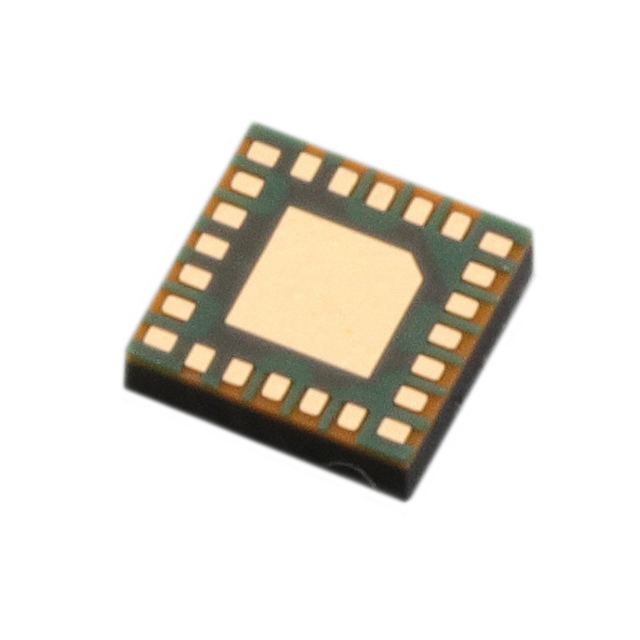

ADRF5042BCCZN-R7
IC RF SWITCH SP4T 44GHZ 24LGA
| Part Description |
RF Switch IC 5G, Cellular, VSAT SP4T 50Ohm 24-LGA (3x3) |
|---|---|
| Quantity | 59 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 24-VFLGA Exposed Pad |
|---|---|
| Device Package | 24-LGA (3×3) |
| Mounting Method | Surface Mount |
| Voltage | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 105°C (TC) |
| RF Type: | 5G, Cellular, VSAT |
| Topology: | Absorptive |
| Circuit: | SP4T |
| Frequency Range: | 100MHz ~ 44GHz |
| Isolation: | 35dB |
| Insertion Loss: | 3.2dB |
| Test Frequency: | 44GHz |
| P1dB: | 27dBm |
| IIP3: | 47dBm |
| Impedance: | 50Ohm |
| Voltage – Supply: | 3.15V ~ 3.45V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
