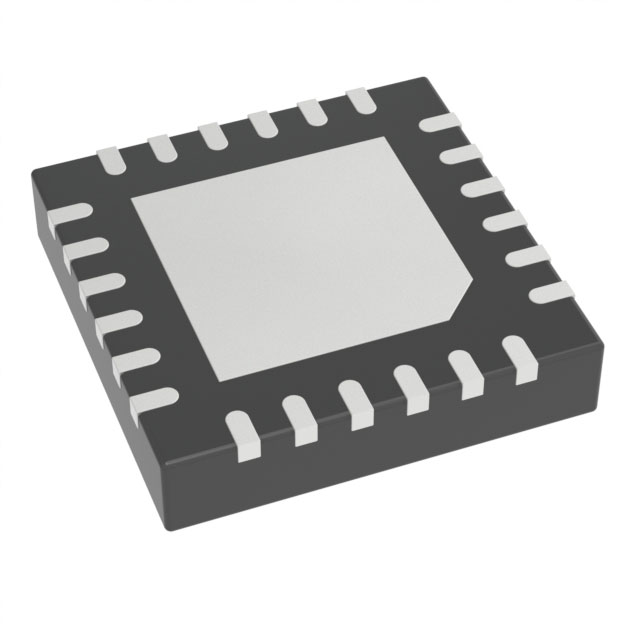

ADRF5250BCPZRL
IC RF SWITCH SP5T 6GHZ 24LFCSP
| Part Description |
RF Switch IC General Purpose SP5T 50Ohm 24-LFCSP (4x4) |
|---|---|
| Quantity | 452 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 24-WFQFN Exposed Pad, CSP |
|---|---|
| Device Package | 24-LFCSP (4×4) |
| Mounting Method | Surface Mount |
| Voltage | 3V ~ 5.25V |
| Operating Temperature | -40°C ~ 105°C (TC) |
| RF Type: | General Purpose |
| Topology: | Absorptive |
| Circuit: | SP5T |
| Frequency Range: | 100MHz ~ 6GHz |
| Isolation: | 46dB |
| Insertion Loss: | 1.8dB |
| Test Frequency: | 6GHz |
| IIP3: | 57dBm |
| Impedance: | 50Ohm |
| Voltage – Supply: | 3V ~ 5.25V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
