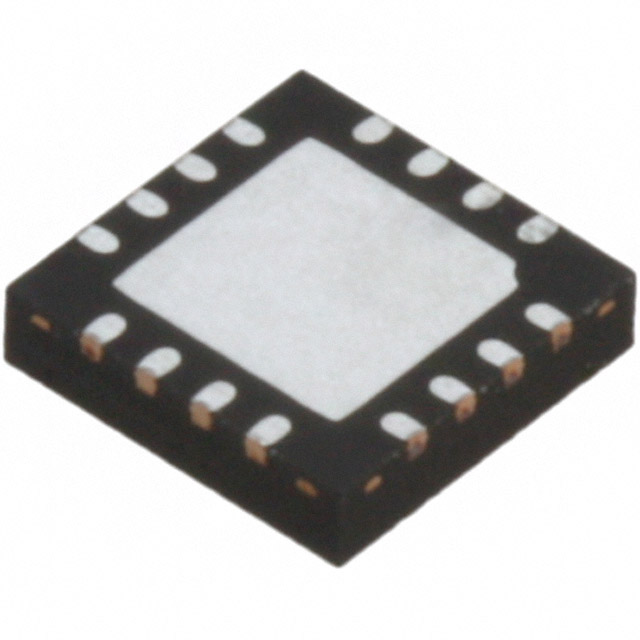

AS196-307LF
IC RF SWITCH SPDT 6GHZ 16LPCC
| Part Description |
RF Switch IC GSM, ISM, PCS, WCDMA SPDT 6 GHz 50Ohm 16-LPCC (4x4) |
|---|---|
| Quantity | 259 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Skyworks Solutions Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-VQFN Exposed Pad |
|---|---|
| Device Package | 16-LPCC (4×4) |
| Mounting Method | Surface Mount |
| Voltage | 2.6V ~ 5V |
| Operating Temperature | -40°C ~ 85°C |
| RF Type: | GSM, ISM, PCS, WCDMA |
| Topology: | Absorptive |
| Circuit: | SPDT |
| Frequency Range: | 300kHz ~ 6GHz |
| Isolation: | 30dB |
| Insertion Loss: | 1.6dB |
| Test Frequency: | 6GHz |
| P1dB: | 27dBm |
| IIP3: | 46dBm |
| Impedance: | 50Ohm |
| Voltage – Supply: | 2.6V ~ 5V |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
