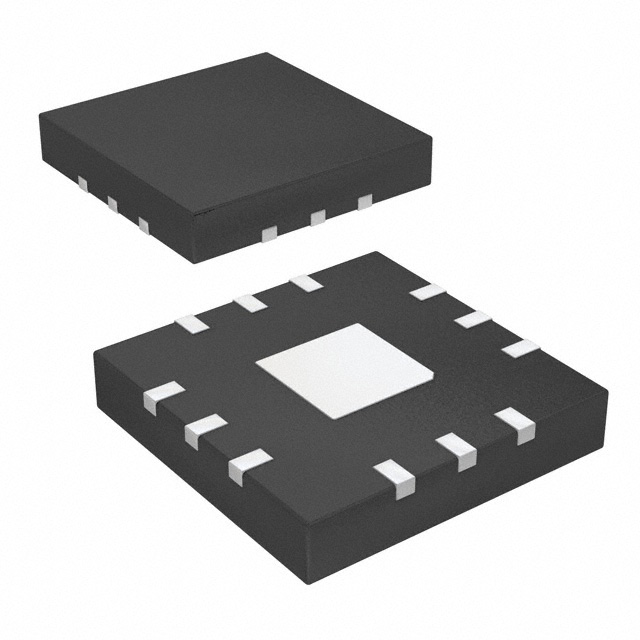

F2972NEGK
IC RF SWITCH SPDT 10GHZ 12VFQFPN
| Part Description |
RF Switch IC General Purpose SPDT 50Ohm 12-VFQFPN (2x2) |
|---|---|
| Quantity | 216 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications
| Part Package | 12-UFQFN Exposed Pad |
|---|---|
| Device Package | 12-VFQFPN (2×2) |
| Mounting Method | Surface Mount |
| Voltage | 2.5V ~ 5.25V |
| Operating Temperature | -40°C ~ 105°C |
| RF Type: | General Purpose |
| Topology: | Reflective |
| Circuit: | SPDT |
| Frequency Range: | 5MHz ~ 10GHz |
| Isolation: | 18dB |
| Insertion Loss: | 0.8dB |
| Test Frequency: | 10GHz |
| P1dB: | 40dBm |
| IIP3: | 77dBm |
| Impedance: | 50Ohm |
| Voltage – Supply: | 2.5V ~ 5.25V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
