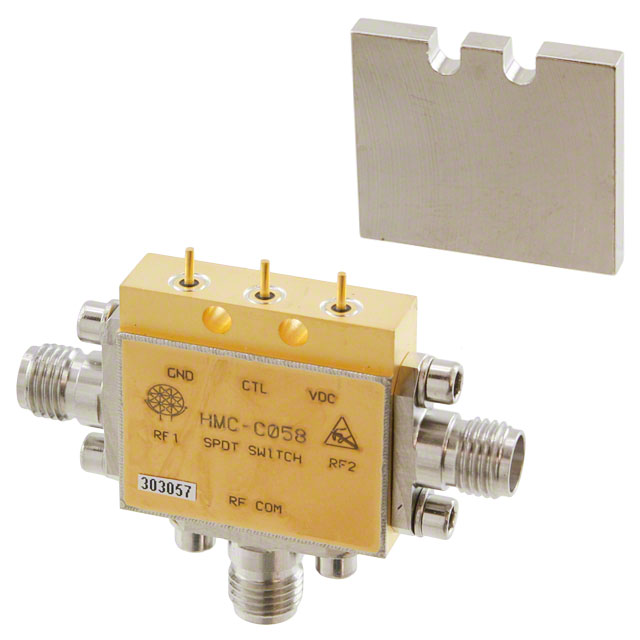

HMC-C058
IC RF SWITCH SPDT 18GHZ
| Part Description |
RF Switch IC General Purpose SPDT 18 GHz 50Ohm |
|---|---|
| Quantity | 1,121 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 39 Weeks |
| Datasheet |
Specifications
| Part Package | Module, SMA Connectors |
|---|---|
| Voltage | 5V |
| Operating Temperature | -55°C ~ 85°C |
| RF Type: | General Purpose |
| Topology: | Absorptive |
| Circuit: | SPDT |
| Frequency Range: | 0Hz ~ 18GHz |
| Isolation: | 55dB |
| Insertion Loss: | 3dB |
| Test Frequency: | 18GHz |
| P1dB: | 27dBm |
| IIP3: | 46dBm |
| Impedance: | 50Ohm |
| Voltage – Supply: | 5V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
