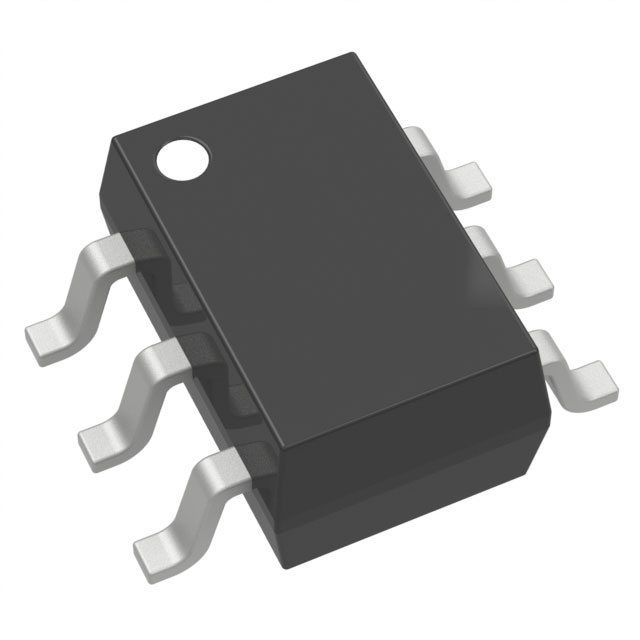

HMC197A
IC RF SWITCH SPDT 3GHZ SOT23-6
| Part Description |
RF Switch IC WLAN SPDT 50Ohm SOT-23-6 |
|---|---|
| Quantity | 1,145 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | SOT-23-6 |
|---|---|
| Device Package | SOT-23-6 |
| Mounting Method | Surface Mount |
| Voltage | 3V ~ 8V |
| Operating Temperature | -40°C ~ 85°C |
| RF Type: | WLAN |
| Topology: | Reflective |
| Circuit: | SPDT |
| Frequency Range: | 0Hz ~ 3GHz |
| Isolation: | 18dB |
| Insertion Loss: | 0.8dB |
| Test Frequency: | 3GHz |
| P1dB: | 29dBm |
| IIP3: | 43dBm |
| Impedance: | 50Ohm |
| Voltage – Supply: | 3V ~ 8V |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
