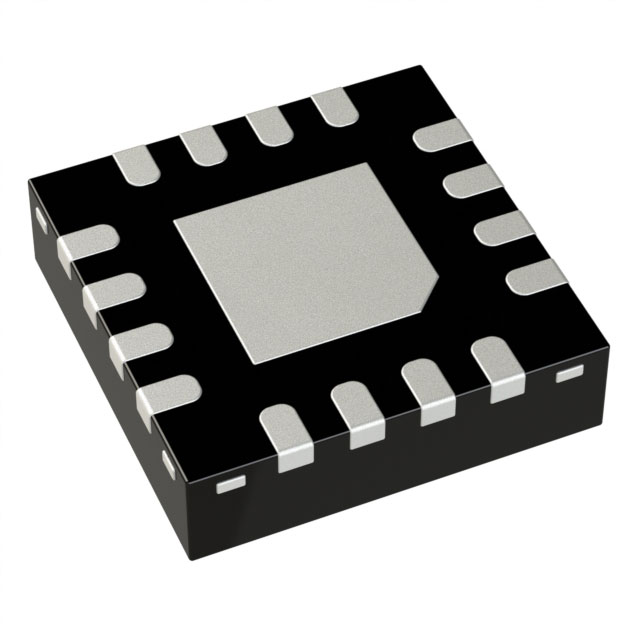

HMC241ALP3E
IC RF SWITCH SP4T 4GHZ 16QFN
| Part Description |
RF Switch IC WiMAX / WiBro SP4T 4 GHz 50Ohm 16-QFN (3x3) |
|---|---|
| Quantity | 1,849 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 16-VFQFN Exposed Pad |
|---|---|
| Device Package | 16-QFN (3×3) |
| Mounting Method | Surface Mount |
| Voltage | 5V |
| RF Type: | WiMAX / WiBro |
| Topology: | Absorptive |
| Circuit: | SP4T |
| Frequency Range: | 100MHz ~ 4GHz |
| Isolation: | 32dB |
| Insertion Loss: | 1.2dB |
| Test Frequency: | 4GHz |
| P1dB: | 29dBm |
| IIP3: | 47dBm |
| Impedance: | 50Ohm |
| Voltage – Supply: | 5V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
