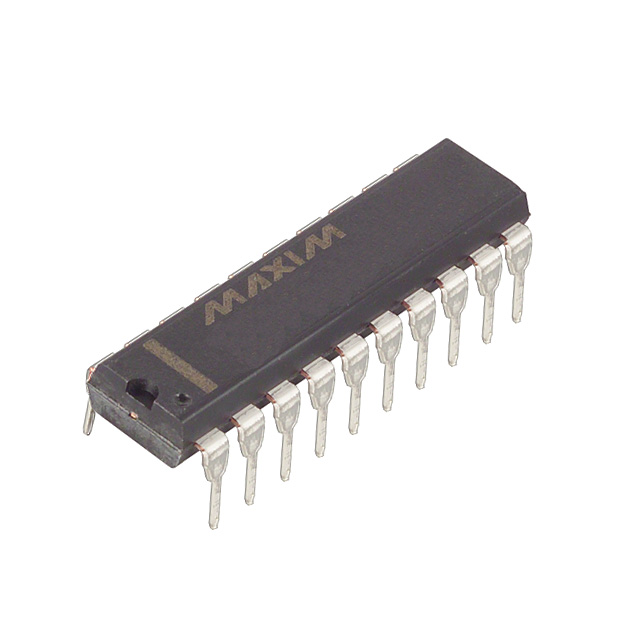

MAX394CPP+
IC SWITCH SPDT X 4 35OHM 20DIP
| Part Description |
4 Circuit IC Switch 2:1 35Ohm 20-PDIP |
|---|---|
| Quantity | 998 Available (as of May 5, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 20-DIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 20-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 35Ohm |
| Channel-to-Channel Matching (ΔRon): | 500mOhm |
| Voltage – Supply, Single (V+): | 2.7V ~ 15V |
| Voltage – Supply, Dual (V±): | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max): | 130ns, 75ns |
| Charge Injection: | 5pC |
| Channel Capacitance (CS(off), CD(off)): | 12pF, 12pF |
| Current – Leakage (IS(off)) (Max): | 200pA |
| Crosstalk: | -88dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
