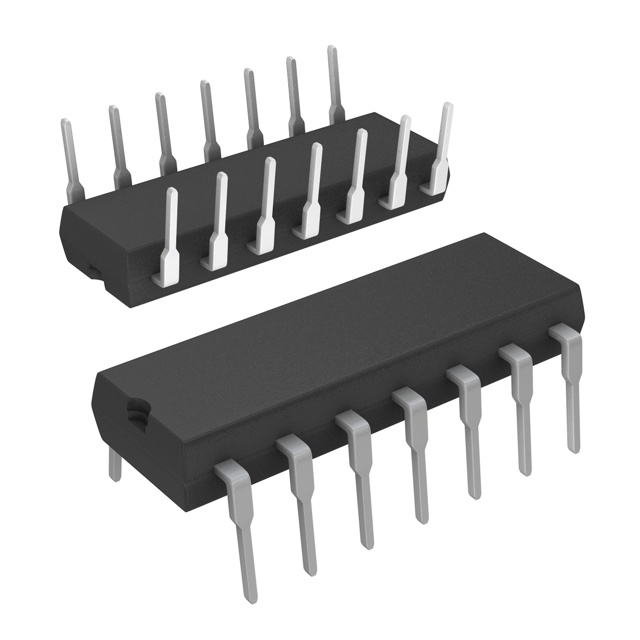

MAX4519CPD
IC SWITCH DPST-NOX2 100OHM 14DIP
| Part Description |
2 Circuit IC Switch 2:1 100Ohm 14-PDIP |
|---|---|
| Quantity | 640 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 14-DIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 14-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Switch Circuit: | DPST – NO |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 4Ohm (Max) |
| Voltage – Supply, Single (V+): | 2V ~ 15V |
| Voltage – Supply, Dual (V±): | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max): | 150ns, 150ns |
| Charge Injection: | 5pC (Max) |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 10pF |
| Current – Leakage (IS(off)) (Max): | 100pA |
| Crosstalk: | -92dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
