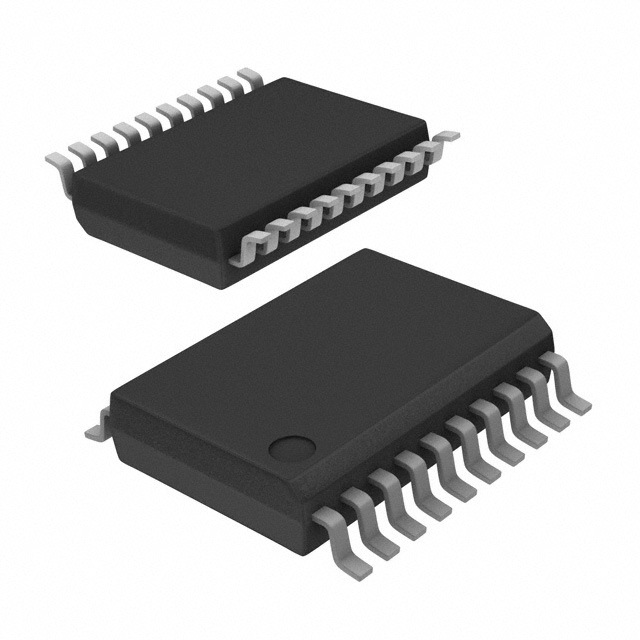

MAX4530CAP+
IC MUX 8:1 75OHM 20SSOP
| Part Description |
1 Circuit IC Switch 8:1 75Ohm 20-SSOP |
|---|---|
| Quantity | 435 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications
| Part Package | 20-SSOP (0.209″”, 5.30mm Width) |
|---|---|
| Device Package | 20-SSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 75Ohm |
| Channel-to-Channel Matching (ΔRon): | 1Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 12V |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max): | 150ns, 100ns |
| Charge Injection: | 1.5pC |
| Channel Capacitance (CS(off), CD(off)): | 3pF, 15pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | -92dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
