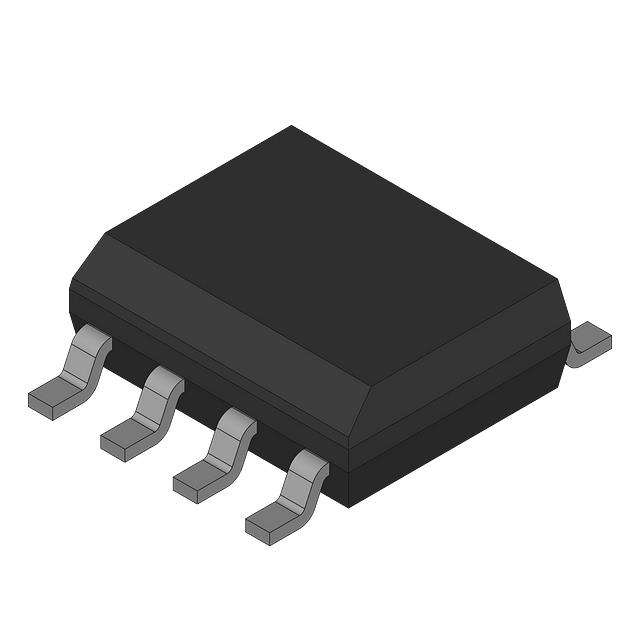

MAX4575ESA
IC SWITCH SPST-NOX2 70OHM 8SOIC
| Part Description |
2 Circuit IC Switch 1:1 70Ohm 8-SOIC |
|---|---|
| Quantity | 622 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 1 Weeks |
| Datasheet |
Specifications
| Part Package | 8-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 8-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 70Ohm |
| Channel-to-Channel Matching (ΔRon): | 500mOhm |
| Voltage – Supply, Single (V+): | 2V ~ 12V |
| Switch Time (Ton, Toff) (Max): | 150ns, 80ns |
| -3db Bandwidth: | 300MHz |
| Charge Injection: | 4pC |
| Channel Capacitance (CS(off), CD(off)): | 20pF, 12pF |
| Current – Leakage (IS(off)) (Max): | 500pA |
| Crosstalk: | -90dB @ 1MHz |
Environmental
| REACH Compliance | REACH Affected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
