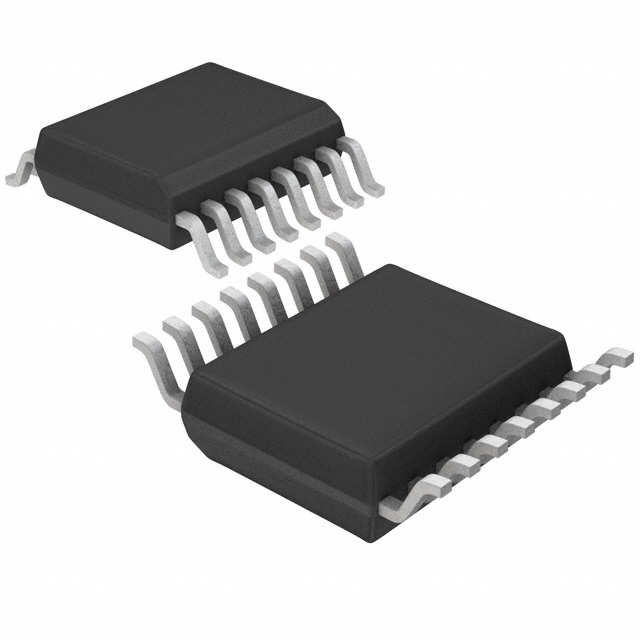

MC74VHC4052DTR2G
IC SWITCH SP4TX2 100OHM 16TSSOP
| Part Description |
2 Circuit IC Switch 4:1 100Ohm 16-TSSOP |
|---|---|
| Quantity | 1,466 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 14 Weeks |
| Datasheet |
Specifications
| Part Package | 16-TSSOP (0.173″”, 4.40mm Width) |
|---|---|
| Device Package | 16-TSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 10Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 6V |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| -3db Bandwidth: | 95MHz |
| Channel Capacitance (CS(off), CD(off)): | 80pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -60dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
