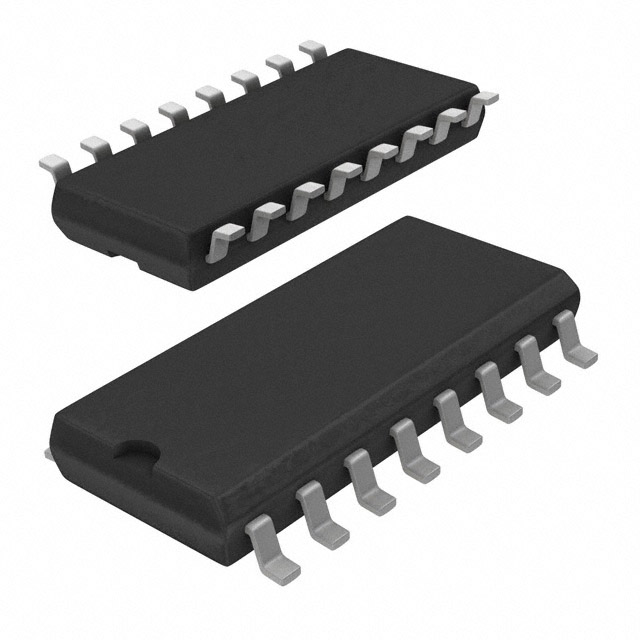

MC74VHC4052M
IC SWITCH SP4TX2 100OHM 16SOEIAJ
| Part Description |
2 Circuit IC Switch 4:1 100Ohm 16-SOEIAJ |
|---|---|
| Quantity | 4 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
Specifications
| Part Package | 16-SOIC (0.209″”, 5.30mm Width) |
|---|---|
| Device Package | 16-SOEIAJ |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 10Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 6V |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| -3db Bandwidth: | 95MHz |
| Channel Capacitance (CS(off), CD(off)): | 80pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -60dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
