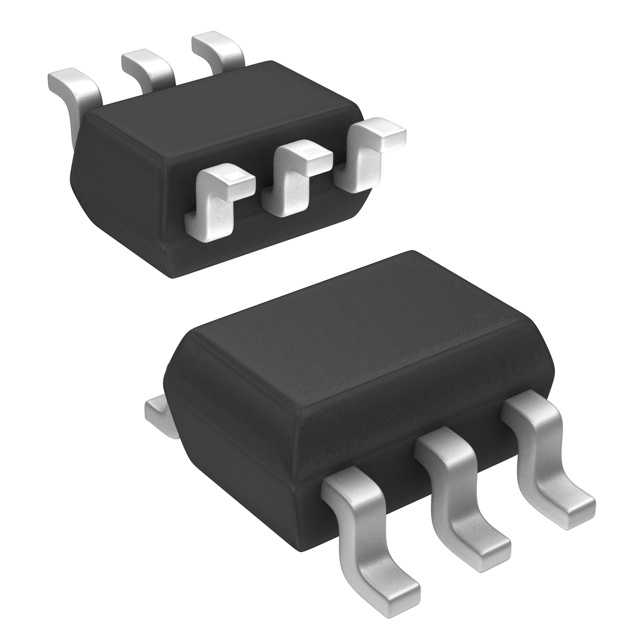

STG3157CTR
IC SWITCH SPDTX1 15OHM SOT323-6L
| Part Description |
1 Circuit IC Switch 2:1 15Ohm SOT-323-6L |
|---|---|
| Quantity | 1,095 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | STMicroelectronics |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 24 Weeks |
| Datasheet |
Specifications
| Part Package | 6-TSSOP, SC-88, SOT-363 |
|---|---|
| Device Package | SOT-323-6L |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 15Ohm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage – Supply, Single (V+): | 1.65V ~ 4.3V |
| Switch Time (Ton, Toff) (Max): | 15ns, 10ns |
| -3db Bandwidth: | 250MHz |
| Charge Injection: | 23pC |
| Channel Capacitance (CS(off), CD(off)): | 5pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -55dB @ 10MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
