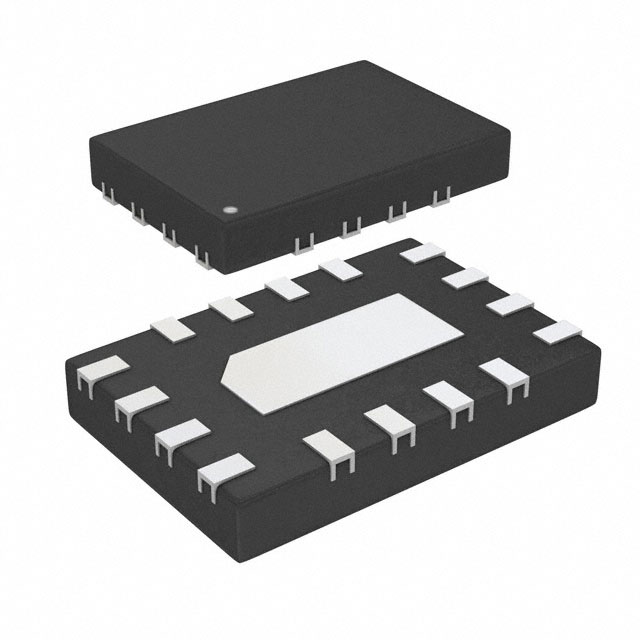

STG3482QTR
IC SWITCH SP4T X 2 5.2OHM 16QFN
| Part Description |
2 Circuit IC Switch 4:1 5.2Ohm 16-QFN (2.6x1.8) |
|---|---|
| Quantity | 1,228 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | STMicroelectronics |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-UFQFN Exposed Pad |
|---|---|
| Device Package | 16-QFN (2.6×1.8) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 5.2Ohm |
| Channel-to-Channel Matching (ΔRon): | 300mOhm |
| Voltage – Supply, Single (V+): | 1.65V ~ 4.3V |
| Switch Time (Ton, Toff) (Max): | 18ns, 15ns |
| -3db Bandwidth: | 300MHz |
| Charge Injection: | 11pC |
| Current – Leakage (IS(off)) (Max): | 20nA |
| Crosstalk: | -77dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
