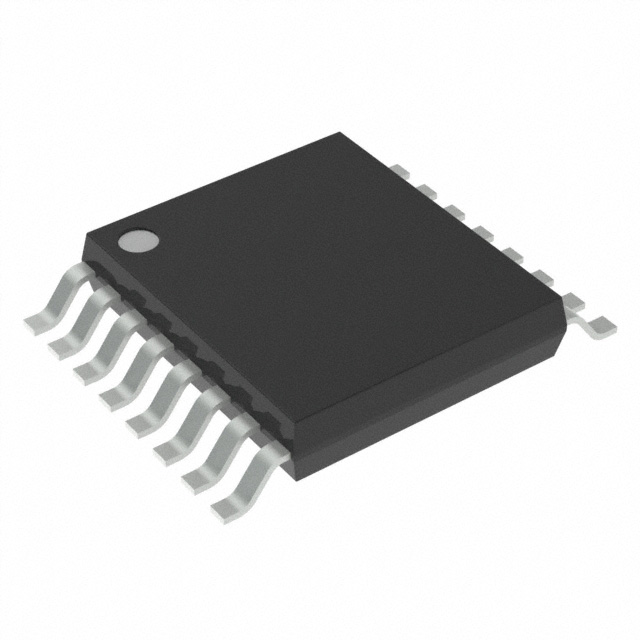

TMUX1574PWR
IC SWITCH SPDTX4 4.5OHM 16TSSOP
| Part Description |
4 Circuit IC Switch 2:1 4.5Ohm 16-TSSOP |
|---|---|
| Quantity | 31 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 16-TSSOP (0.173″”, 4.40mm Width) |
|---|---|
| Device Package | 16-TSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon): | 70mOhm |
| Switch Time (Ton, Toff) (Max): | 35µs, 95ns |
| -3db Bandwidth: | 2GHz |
| Charge Injection: | 3.5pC |
| Channel Capacitance (CS(off), CD(off)): | 3.5pF, 3.5pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -90dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
