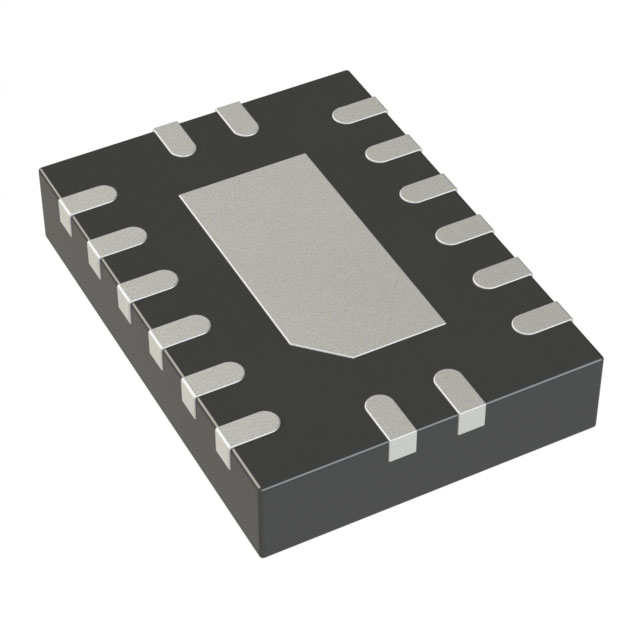

TMUX4051BQBR
12-V, 8:1, ONE-CHANNEL MULTIPLEX
| Part Description |
1 Circuit IC Switch 8:1 240Ohm 16-WQFN (2.5x3.5) |
|---|---|
| Quantity | 1,006 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 16-WFQFN Exposed Pad |
|---|---|
| Device Package | 16-WQFN (2.5×3.5) |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SP8T – Open |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 240Ohm |
| Channel-to-Channel Matching (ΔRon): | 2Ohm |
| Voltage – Supply, Single (V+): | 5V ~ 24V |
| Switch Time (Ton, Toff) (Max): | 110ns, 85ns (Typ) |
| -3db Bandwidth: | 430MHz |
| Charge Injection: | 2pC |
| Channel Capacitance (CS(off), CD(off)): | 3pF, 9pF |
| Crosstalk: | -90dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
