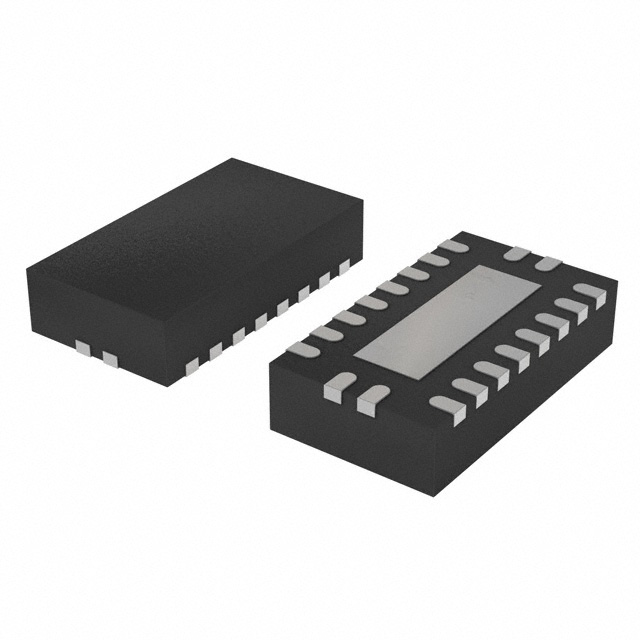

TMUXHS4212IRKSR
IC SW DPST, SPDTX2 8.4OHM 20VQFN
| Part Description |
2 Circuit IC Switch 1:2, 2:1 8.4Ohm 20-VQFN (4.5x2.5) |
|---|---|
| Quantity | 234 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 20-VFQFN Exposed Pad |
|---|---|
| Device Package | 20-VQFN (4.5×2.5) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Switch Circuit: | DPST, SPDT |
| Multiplexer/Demultiplexer Circuit: | 1:2, 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 8.4Ohm |
| Channel-to-Channel Matching (ΔRon): | 500mOhm |
| Voltage – Supply, Single (V+): | 1.71V ~ 1.98V, 3V ~ 3.6V |
| Switch Time (Ton, Toff) (Max): | 100ns, 100ns |
| -3db Bandwidth: | 13GHz |
| Current – Leakage (IS(off)) (Max): | 5µA |
| Crosstalk: | -27dB @ 10GHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | Not applicable |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
