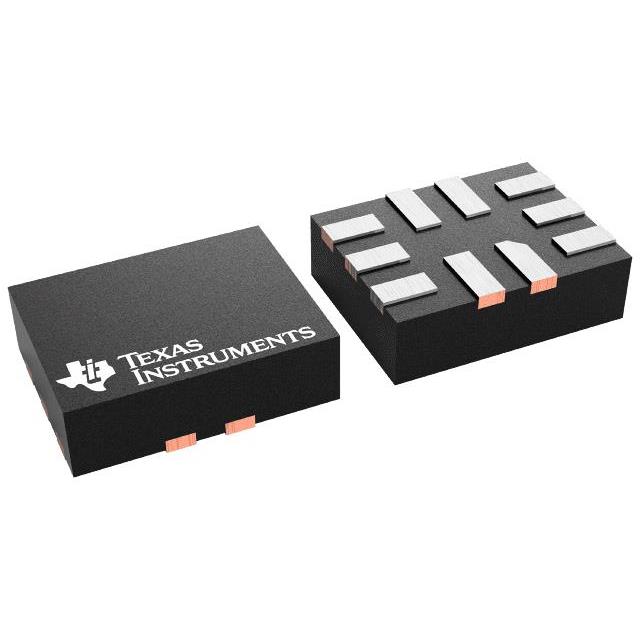

TMUXHS221LVNKGR
USB 2.0 480 MBPS 2:1/1:2 MULTIPL
| Part Description |
4 Circuit IC Switch 1:2, 2:1 8Ohm 10-UQFN (1.4x1.8) |
|---|---|
| Quantity | 895 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 10-UFQFN |
|---|---|
| Device Package | 10-UQFN (1.4×1.8) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – Open/Closed |
| Multiplexer/Demultiplexer Circuit: | 1:2, 2:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 8Ohm |
| Channel-to-Channel Matching (ΔRon): | 200mOhm |
| Voltage – Supply, Single (V+): | 1.62V ~ 1.98V |
| Switch Time (Ton, Toff) (Max): | 32µs, 500ns |
| -3db Bandwidth: | 3.3GHz |
| Current – Leakage (IS(off)) (Max): | 12µA |
| Crosstalk: | -41dB @ 240MHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
