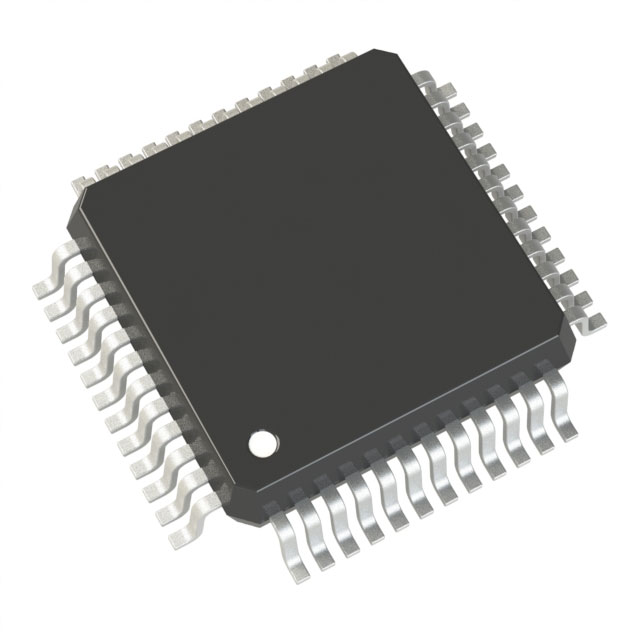

TMUX9616PTR
HIGH VOLTAGE 1:1, 16-CHANNEL SWI
| Part Description |
16 Circuit IC Switch 1:1 19Ohm 48-LQFP (7x7) |
|---|---|
| Quantity | 1,190 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 48-LQFP |
|---|---|
| Device Package | 48-LQFP (7×7) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 16 |
| On-State Resistance (Max): | 19Ohm |
| Channel-to-Channel Matching (ΔRon): | 380mOhm |
| Voltage – Supply, Single (V+): | 20V ~ 110V |
| Voltage – Supply, Dual (V±): | ±20V ~ 110V |
| Switch Time (Ton, Toff) (Max): | 1.5µs (Typ), 800ns (Typ) |
| -3db Bandwidth: | 500MHz |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 5pF |
| Current – Leakage (IS(off)) (Max): | 70nA (Typ) |
| Crosstalk: | -75dB @ 5MHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
