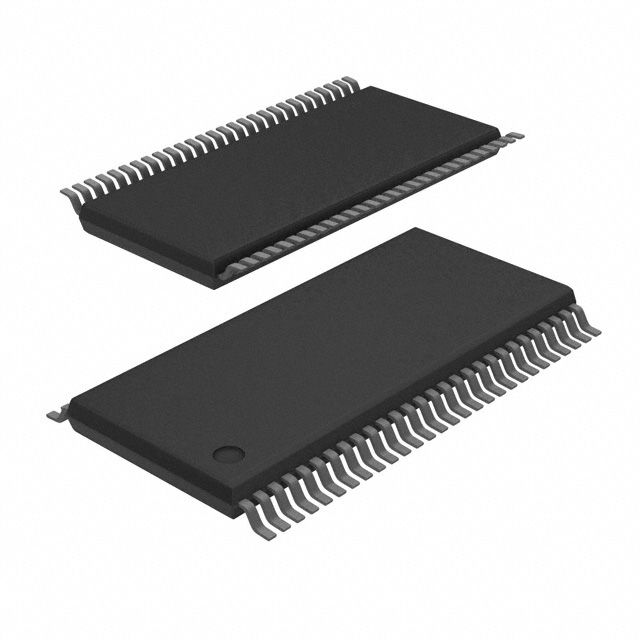

SN75971B2DLR
IC TRANSCEIVER HALF 9/9 56SSOP
| Part Description |
9/9 Transceiver Half RS422, RS485 56-SSOP |
|---|---|
| Quantity | 1,940 Available (as of May 5, 2026) |
| Product Category | Drivers, Receivers, Transceivers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 56-BSSOP (0.295″”, 7.50mm Width) |
|---|---|
| Device Package | 56-SSOP |
| Mounting Method | Surface Mount |
| Voltage | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Type: | Transceiver |
| Protocol: | RS422, RS485 |
| Number of Drivers/Receivers: | 9/9 |
| Duplex: | Half |
| Receiver Hysteresis: | 45 mV |
| Voltage – Supply: | 4.75V ~ 5.25V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 2 (1 Year) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
