10AX048H2F34I1SG

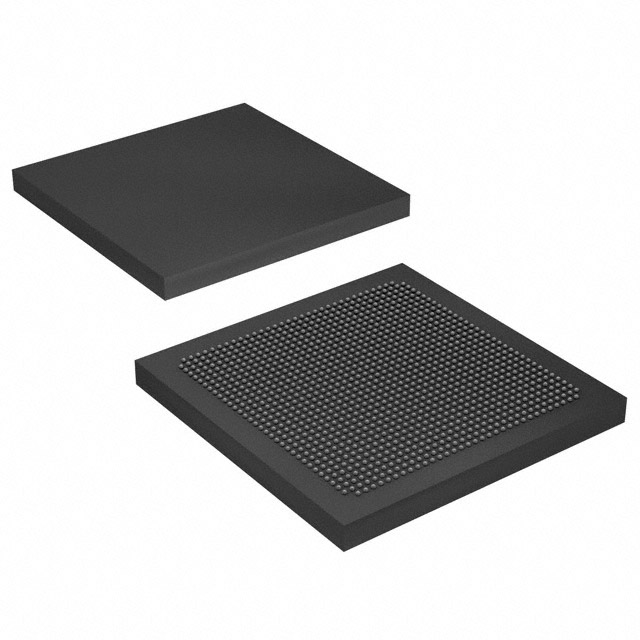

The 10AX048H2F34I1SG is an Intel Arria 10 GX field programmable gate array (FPGA) supplied in a 1152-FCBGA (35×35) surface-mount package. It delivers mid-range, 20 nm-class FPGA capability targeted at high-performance, power-sensitive applications.

Designed for markets such as wireless, wireline, broadcast, computing and storage, medical, and defense, this Arria 10 GX device combines large programmable logic capacity, embedded memory, and a broad I/O complement to support complex system designs.

Key Features

• Programmable Logic Density — 480,000 logic elements for implementing complex logic, control and data-path functions.
• Embedded Memory — 5,664,768 total RAM bits to support buffering, on-chip cache and custom memory architectures.
• I/O and Package — 492 I/O pins in a 1152-FCBGA (35×35) package, surface-mount mounting for compact board integration.
• Power Supply — Core voltage range 870 mV to 980 mV, enabling low-voltage operation for power-sensitive designs.
• Industrial Temperature Grade — Specified operating range from −40 °C to 100 °C for deployment in demanding environments.
• Series-Level Fabric Features — Arria 10 device family features referenced in the product documentation include variable-precision DSP blocks, embedded memory blocks, PLL/clock networks, and support for transceivers and PCIe Gen1/Gen2/Gen3 hard IP.
• Compliance — RoHS-compliant device.

Typical Applications

• Wireless infrastructure — Channel and switch cards in remote radio heads and mobile backhaul equipment leveraging high logic density and embedded memory.
• Wireline networking — 40G/100G muxponders, transponders and 100G line cards requiring programmable logic and high-speed I/O.
• Broadcast and media — Studio switches, video transport and videoconferencing systems that benefit from on‑chip memory and flexible I/O.
• Computing and storage acceleration — Flash cache, cloud server acceleration and custom compute offloads using large logic fabric and DSP capabilities.
• Defense and instrumentation — Radar, missile guidance and electronic warfare systems where industrial temperature range and reconfigurable logic are required.

Unique Advantages

• High logic capacity: 480,000 logic elements give designers headroom for large, multimodule FPGA implementations without external logic.
• Substantial on-chip memory: 5,664,768 RAM bits reduce external memory dependence and improve data throughput for buffering and caching tasks.
• Generous I/O and compact package: 492 I/O in a 1152-FCBGA (35×35) package supports dense connectivity while keeping PCB footprint efficient.
• Low-voltage core operation: 870 mV–980 mV supply range supports power-optimized system designs.
• Industrial operating range: −40 °C to 100 °C rating aligns with deployment in temperature-challenging environments.
• Platform-level peripherals: Series documentation cites integrated features such as DSP blocks, PLL/clock networks, transceivers and PCIe hard IP to accelerate system integration.

Why Choose 10AX048H2F34I1SG?

The 10AX048H2F34I1SG positions itself as a mid-range, high-capacity FPGA option within the Intel Arria 10 GX family, combining large logic and memory resources with extensive I/O and industrial temperature capability. Its specification profile suits engineers building power-sensitive, performance-driven systems across communications, compute acceleration, broadcast and defense markets.

Choosing this device provides a scalable, reprogrammable hardware platform backed by Intel’s Arria 10 device documentation and family-level features, helping shorten development time while maintaining design flexibility and robustness for long-term deployments.
