A3PN030-Z1QNG68

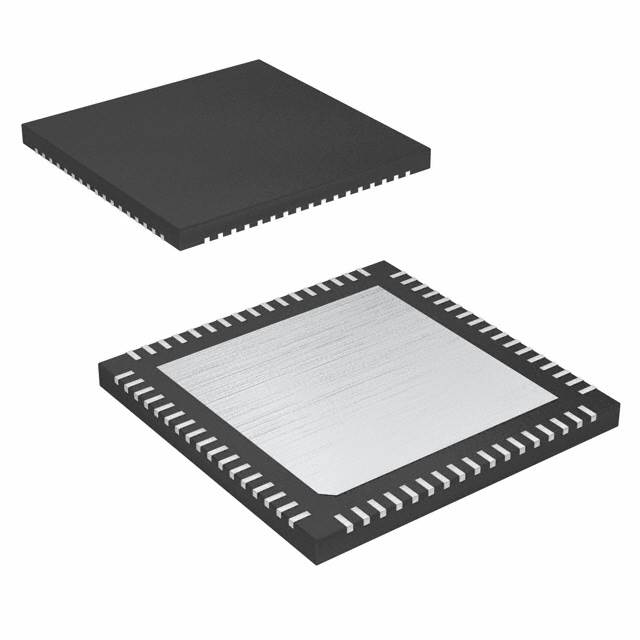

The A3PN030-Z1QNG68 is a ProASIC3 nano field programmable gate array (FPGA) from Microchip Technology, delivered in a 68-VFQFN exposed pad package. It provides approximately 768 logic elements (about 30,000 gates) and 49 user I/O pins in a compact surface-mount package, with a specified core voltage range and commercial temperature rating for mainstream embedded designs.

This device is suited to compact logic integration tasks where a defined count of logic elements and I/O are required, and where a QFN exposed-pad package and surface-mount assembly are preferred.

Key Features

• Logic Capacity — Approximately 768 logic elements (listed as 768 LABs/CLBs) providing roughly 30,000 gates for small to mid-size logic integration.
• I/O and Connectivity — 49 available I/O pins to support peripheral interfacing and control signals in compact systems.
• On-chip Memory — No embedded RAM (Total RAM Bits: 0), suitable for designs that rely on external memory or are optimized for pure logic and glue functions.
• Power Supply — Core voltage supply specified from 1.425 V to 1.575 V for consistent power design and supply selection.
• Package and Mounting — 68-VFQFN exposed pad package (supplier package listed as 68-QFN, 8×8) offered in a surface-mount form factor for compact PCB layouts.
• Temperature and Grade — Commercial grade with an operating temperature range of −20 °C to 85 °C, aligning with standard commercial embedded applications.
• Environmental Compliance — RoHS compliant, supporting lead-free assembly and regulatory requirements for many electronics markets.

Typical Applications

• Embedded Control Logic — Implement control, state machines, and finite-state logic where approximately 768 logic elements and 49 I/O pins meet the design requirements.
• I/O Expansion and Glue Logic — Provide signal aggregation, protocol bridging, or interface adaptation in systems that require a compact surface-mount FPGA solution.
• Compact Board Designs — Use the 68-VFQFN exposed pad package for space-constrained PCBs needing a QFN-format programmable logic device.

Unique Advantages

• Right-sized Logic Resources: Approximately 768 logic elements and ~30k gates give predictable capacity for small to mid-scale designs without unnecessary overhead.
• Clear I/O Count: 49 I/O pins simplify pin budgeting for peripheral interfaces and control signals.
• Compact Surface-Mount Package: 68-VFQFN exposed pad in an 8×8 QFN outline enables compact PCB layouts and standard surface-mount assembly techniques.
• Tightly Specified Core Voltage: A defined supply range of 1.425 V to 1.575 V helps streamline power supply selection and design.
• Commercial Temperature Range: Rated from −20 °C to 85 °C to meet typical commercial application environments.
• RoHS Compliant: Conforms to lead-free manufacturing and environmental compliance needs.

Why Choose A3PN030-Z1QNG68?

The A3PN030-Z1QNG68 combines a compact 68-VFQFN exposed-pad package with approximately 768 logic elements and 49 I/O pins, making it a practical choice for designers who need a predictable, surface-mount FPGA solution for small to mid-size logic integration. Its defined core voltage range and commercial operating temperature provide clear electrical and thermal boundaries for system design.

Manufactured by Microchip Technology and delivered in a RoHS-compliant package, this device is appropriate for embedded designs that prioritize compact footprint, straightforward power requirements, and a moderate logic/I/O budget.

Request a quote or submit a price inquiry to evaluate A3PN030-Z1QNG68 for your next design project and to obtain availability and purchasing details.
